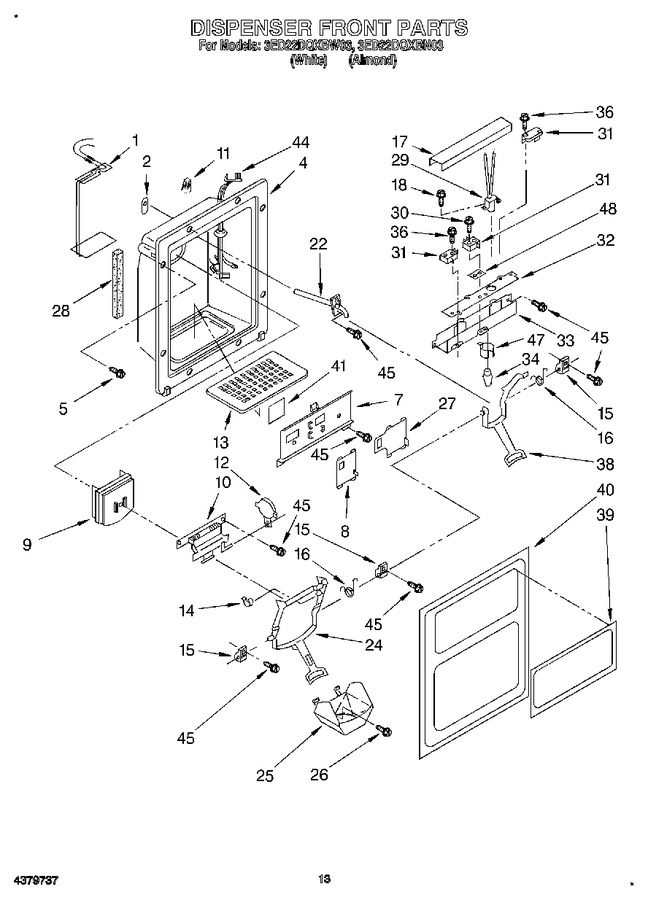

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2165241 | Heater, Dispenser |
|
- | |||||
| 2 | 987048 | Grommet |
|
- | |||||
| 4 | 1125969 | Housing, Dispenser (almond) |
|
- | |||||
| 4 | 1124715 | Housing, Dispenser (white) |
|
- | |||||
| 5 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 7 | 2152717 | Frame, Slides (white) |
|
- | |||||
| 7 | 2152718 | Frame, Slides (almond) |
|
- | |||||
| 8 | 2152721 | Slide, Cube/crush Switch (almond) |
|
- | |||||
| 8 | 2152720 | Slide, Cube/crush Switch (white) |
|
- | |||||
| 9 | 2147168 | Door, Ice |
|
$ 33.13 | |||||
| 10 | 2147167 | Door Mechanism Assembly (includes Item 9) |
|
$ 64.67 | |||||
| 11 | 227991 | Wire Connector |
|
- | |||||
| 12 | WP1120581 | Mechanism Delay (Replaces: 1120581) |
|
$ 213.07 | |||||
| 13 | 1126121 | Grille, Overflow (almond) |
|
- | |||||
| 13 | 1126120 | Grille, Overflow (white) |
|
- | |||||
| 14 | 987917 | Clip, Bearing (2) |
|
- | |||||
| 15 | 983697 | Bearing, Lever (3) |
|
- | |||||
| 16 | 983696 | Spring, Lever (2) |
|
$ 21.26 | |||||
| 17 | 2147165 | Shield, Wiring |
|
- | |||||
| 18 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 22 | WP4388152 | Water Fitting Assembly (includes (Replaces: 2157744) |
|
$ 276.43 | |||||
| 24 | 1124718 | Lever, Ice Dispenser (white) |
|
- | |||||
| 24 | 1125972 | Lever, Ice Dispenser (almond) |
|
- | |||||
| 25 | 1124730 | Guide, Ice (white) |
|
$ 19.06 | |||||
| 25 | 1126026 | Guide, Ice (almond) |
|
- | |||||
| 26 | 488892 | Screw |
|
- | |||||
| 27 | 2152727 | Slide, Light Switch (almond) |
|
- | |||||
| 27 | 2152726 | Slide, Light Switch (white) |
|
- | |||||
| 28 | 482672 | Seal |
|
- | |||||
| 29 | 2166862 | Lamp Holder |
|
- | |||||
| 30 | 488361 | Screw |
|
- | |||||
| 31 | WP2162361 | Switch, Micro (4) (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 32 | 2147164 | Insulator, Control Bracket |
|
- | |||||
| 33 | 2147163 | Bracket, Control |
|
- | |||||
| 34 | 989331 | Bulb, Light |
|
- | |||||
| 36 | 00488362 | Screw (Replaces: 488362) |
|
$ 144.58 | |||||
| 38 | 2159197 | Lever, Water Dispenser (white) |
|
- | |||||
| 38 | 2159198 | Lever, Water Dispenser (almond) |
|
- | |||||
| 39 | 2162923 | Plaque, Front Cover (white) |
|
- | |||||
| 39 | 2162924 | Plaque, Front Cover (almond) |
|
- | |||||
| 40 | 2162925 | Front Cover, Housing (white) |
|
- | |||||
| 40 | 2162927 | Front Cover, Housing (almond (includes Item 39)) |
|
- | |||||
| 41 | 2147172 | Heat Shield, Frame |
|
- | |||||
| 44 | 2147166 | Wiring Harness, Door |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 47 | 2166858 | Shroud, Bracket |
|
- | |||||
| 48 | 625834 | Spacer |
|
$ 7.99 |
