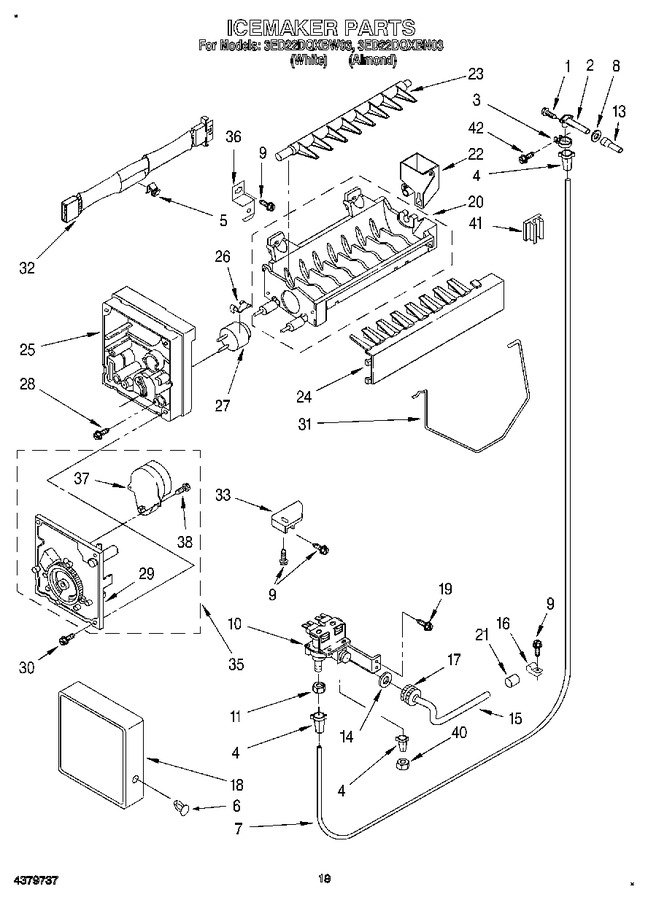

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.99
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	489115		Clip				$ 5.51
7	W10823511		Tube, Water   (Replaces: 1108197)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
10	2165238		Valve, Solenoid		Appelez-nous	-
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
13	2155247		Tube, Water Inlet		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628329		Cover		Appelez-nous	-
19	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
20	628282		Mold & Heater Assembly (also Order		Appelez-nous	-
21	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 627790)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 109.18
27	542369		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 13.37
29	628377		Motor Module		Appelez-nous	-
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 2171593)			Immediately	$ 60.20
32	WP2187464		Harness, Wiring   (Replaces: 628281)				$ 124.57
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
35	628367		Module Assembly (includes Items 29, 37 & 38)		Appelez-nous	-
36	2155021		Clip, Support (2)		Appelez-nous	-
37	628303		Motor		Appelez-nous	-
38	489136		Screw				$ 10.29
40	1129179		Nut, Compression		Appelez-nous	-
41	W11501419		Clip   (Replaces: 2154101)			Immediately	$ 11.52
42	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
42	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
42	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
42	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
42	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
42	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
42	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
42	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
42	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
42	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
42	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
42	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
42	WP488787		Screw   (Replaces: 488886)				$ 10.58
42	350942		Primer White (13 Oz. Spray Can)				$ 89.66
42	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
42	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
42	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
42	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
42	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
42	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
42	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
42	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
42	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
42	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
42	833938		Kit, Terminal Connector				$ 8.07
42	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2176613		Service & Wiring Sheet		Appelez-nous	-
	LIT2170408		Use & Care Guide		Appelez-nous	-
	WPW10312301		Ice Crusher Assembly   (Replaces: 2152708)				$ 430.90
	LIT628371		Modular Icemaker Service Sheet		Appelez-nous	-
