Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7446701 Shroud, Fan Appelez-nous -
2 B0544101 Spacer Appelez-nous -
3 A3054501 Clip-cond Appelez-nous -
4 WPB2150504 Drier   (Replaces: B5715001) Special Order $ 136.98

5 M0104002 Clamp-drier Appelez-nous -
6 M0257037 Sems Fastner Appelez-nous -
7 A3013906 Spacer Appelez-nous -
8 D7196401 Condenser Assy Pnt Appelez-nous -
9 M0257039 Sems Fastner Appelez-nous -
10 A3013907 Spacer Appelez-nous -
11 A3085401 Bracket, Support Appelez-nous -
12 M0286003 Nut A Appelez-nous -
13 M0289401 Fastener Appelez-nous -
14 M1210002 Rivet Appelez-nous -
15 C8836301 Roller Kit Appelez-nous -
16 M0283510 Nut, Self Thread Appelez-nous -
17 M0520102 Roller Appelez-nous -
20 C8820504 Front Rail Appelez-nous -
22 B5742601 Blade, Fan Appelez-nous -
23 833697 Motor, Fan   (Replaces: C8736901) In-Stock Immediately $ 109.14

24 B0598701 Bracket, Cond Motor Appelez-nous -
26 M0500107 Grommet K Appelez-nous -
28 B8314101 Seal-fan Shroud Q Appelez-nous -
29 D7384701 Drain Tube Appelez-nous -
30 B5619801 Extension Appelez-nous -
31 D7001001 Pan, Drain Appelez-nous -
32 R0131577 Timer, Defrost   (Replaces: D7004104) In-Stock Immediately $ 58.41

33 C3647902 Timer Bracket Appelez-nous -
34 M1210001 Pivot Pin K Appelez-nous -
35 C3611302 Rail Rear Appelez-nous -
36 M1200001 Cotter Pin K Appelez-nous -
37 C3655002 Mc Back Assy Appelez-nous -
38 M0110502 Clip Appelez-nous -
39 A3125701 Stop,drain Pan Appelez-nous -
40 B5691701 Pad A Appelez-nous -
41 M0241118 Screw-sm Appelez-nous -
42 M0220101 Screw Appelez-nous -
43 M0221332 Screw, Shoulder Appelez-nous -
45 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

46 M0233844 Screw, T F Appelez-nous -
47 M0218116 Screw Appelez-nous -
48 A3245101 Strain Relief Appelez-nous -
49 R9800670 Kit, Screw   (Replaces: M0211030) Special Order $ 10.58

50 M0213815 Screw Appelez-nous -
51 B0599702 Retainer-seal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

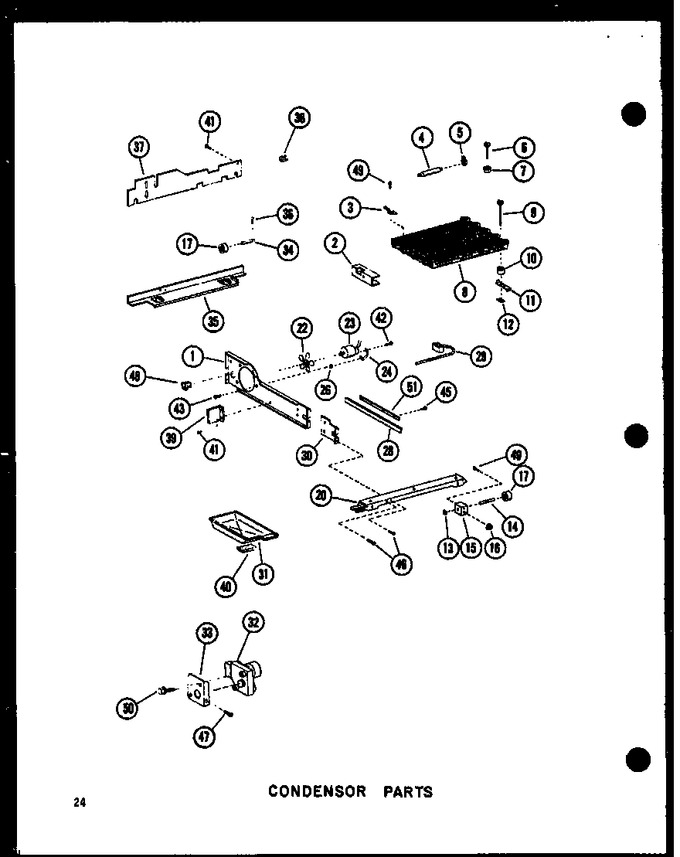

Diagram for CSDI25D (BOM: P7390018W)
