Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D3952402 Breaker Frame Appelez-nous -
2 D7180002 Brkr Frame Appelez-nous -
2 D7424101 Breaker Frame Appelez-nous -
3 D3953104 Breaker Frame Appelez-nous -
4 D7423602 Breaker Frame Appelez-nous -
4 D7424001 Breaker Frame Appelez-nous -
5 D3952505 Breaker Frame Appelez-nous -
6 D3952603 Breaker Frame Appelez-nous -
7 C3628503 Heater-frz Flange Appelez-nous -
8 M0117301 Clip, Grille Appelez-nous -
9 B5743601 Cover-switch Appelez-nous -
10 D7415401 Grille Appelez-nous -
11 18814 Switch, Light   (Replaces: C3680305) Special Order $ 39.44

12 A3120801 Key Appelez-nous -
13 C8810405 Mullion (almond) Appelez-nous -
13 C8810404 Mullion, Gold Appelez-nous -
13 C8810403 Mullion (avocado) Appelez-nous -
13 C8810402 Mullion, Coppertone Appelez-nous -
13 C8810401 Mullion Vert.white) Appelez-nous -
14 M0115501 Clip Appelez-nous -
14 M0113401 Clip Appelez-nous -
15 C3628304 Drier, Center Mullion, 115 V., Appelez-nous -
16 D7009801 Knob Appelez-nous -
18 D7345503 Escutcheon Appelez-nous -
19 M0230926 Screw Appelez-nous -
20 C8702602 Bracket, Control Appelez-nous -
21 A3030335 Gasket-per Ft Appelez-nous -
22 C3615004 Control Appelez-nous -
23 M0341201 Switch Appelez-nous -
24 A3113501 Gasket-damper Appelez-nous -
25 C3682901 Control, Ref Appelez-nous -
26 A3113601 Gasket Control Appelez-nous -
27 D7416501 Escutcheon Appelez-nous -
30 18805 Switch   (Replaces: C3680306) Special Order $ 21.59

31 D7424401 Breaker Frame Appelez-nous -
32 D7424402 Breaker Frame Appelez-nous -
33 M0211207 Screw, S.m. Appelez-nous -
34 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

35 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

36 M0230926 Screw Appelez-nous -
37 M0010202 Rivet A Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

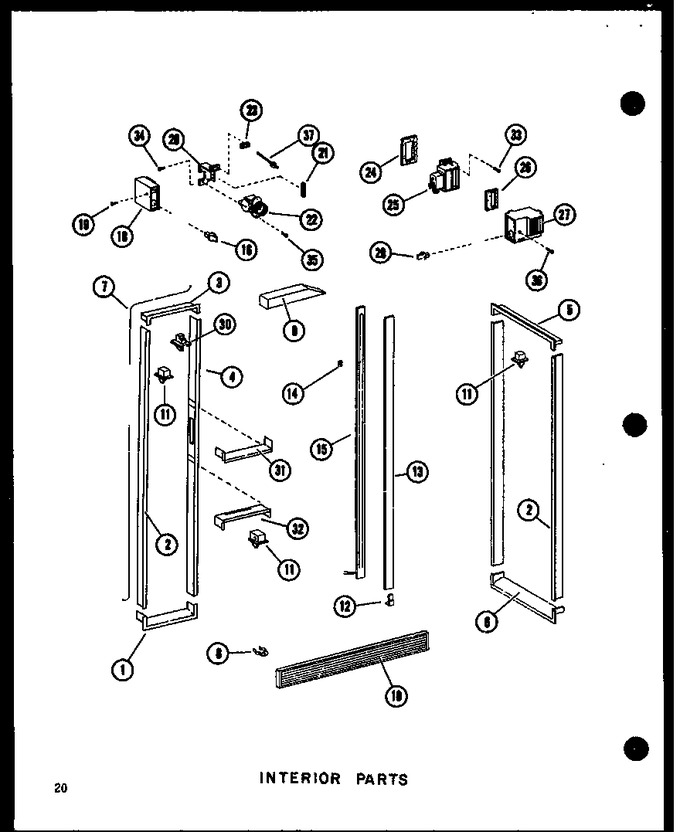

Diagram for CSDI25D (BOM: P7390018W)
