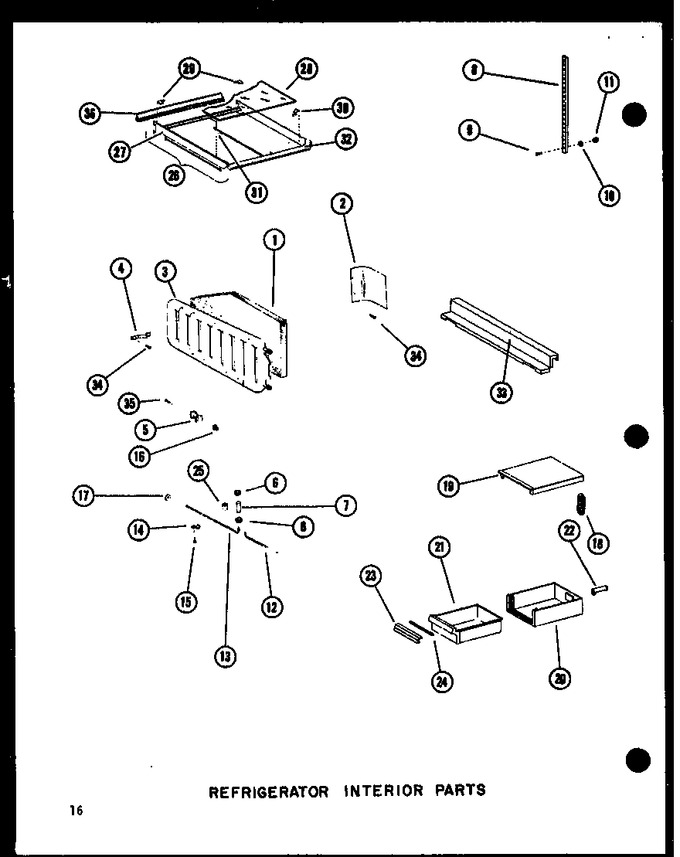

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5707402 | Insulation K |
|
- | |||||
| 2 | A3204801 | Baffle |
|
- | |||||
| 3 | D7216301 | Service Tank |
|
- | |||||
| 4 | B5698901 | Spring-leaf |
|
- | |||||
| 5 | B5698101 | Support Water Tank |
|
- | |||||
| 6 | A3138301 | Grommet |
|
- | |||||
| 7 | A3224901 | Drain Tube |
|
- | |||||
| 8 | D7103701 | Ladder |
|
- | |||||
| 9 | M0207632 | Screw |
|
- | |||||
| 10 | M0270508 | Washer |
|
- | |||||
| 11 | WP486255 | Nut Keps K (Replaces: M0281003) |
|
$ 6.47 | |||||
| 12 | WPB5705307 | Tubing Plastic 103`` (Replaces: B5705307) |
|
$ 13.05 | |||||
| 13 | A3101506 | Tube Plastic K |
|
- | |||||
| 14 | M0102804 | Clamp |
|
- | |||||
| 15 | M0233716 | Screw |
|
- | |||||
| 16 | M0580007 | Grommet, Screw |
|
- | |||||
| 17 | A3207902 | Grommet, Tube |
|
- | |||||
| 19 | D7343603 | Top-mt Kpr |
|
- | |||||
| 20 | D7001303 | Sleeve, Meat Keeper |
|
- | |||||
| 21 | D7425301 | Pan, Meat Keeper |
|
- | |||||
| 22 | C3614902 | Grommet |
|
- | |||||
| 23 | C8831704 | Trim-handle A |
|
- | |||||
| 24 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 25 | A3225902 | Spring |
|
- | |||||
| 26 | C8823412 | Glass Shelf Assy |
|
- | |||||
| 26 | C8823411 | Glass Shelf Assy |
|
- | |||||
| 27 | R0179061 | Frame Asy |
|
- | |||||
| 27 | R0179058 | Frame Asy |
|
- | |||||
| 28 | B8303603 | Glass Shelf A |
|
- | |||||
| 29 | A3232201 | Spacer Shelf A |
|
- | |||||
| 30 | A3233901 | Spacer Shelf A |
|
- | |||||
| 31 | A3233902 | Spacer Shelf A |
|
- | |||||
| 32 | D7343002 | Trim-shelf A |
|
- | |||||
| 34 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 35 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 36 | C8831501 | Trim |
|
- |
