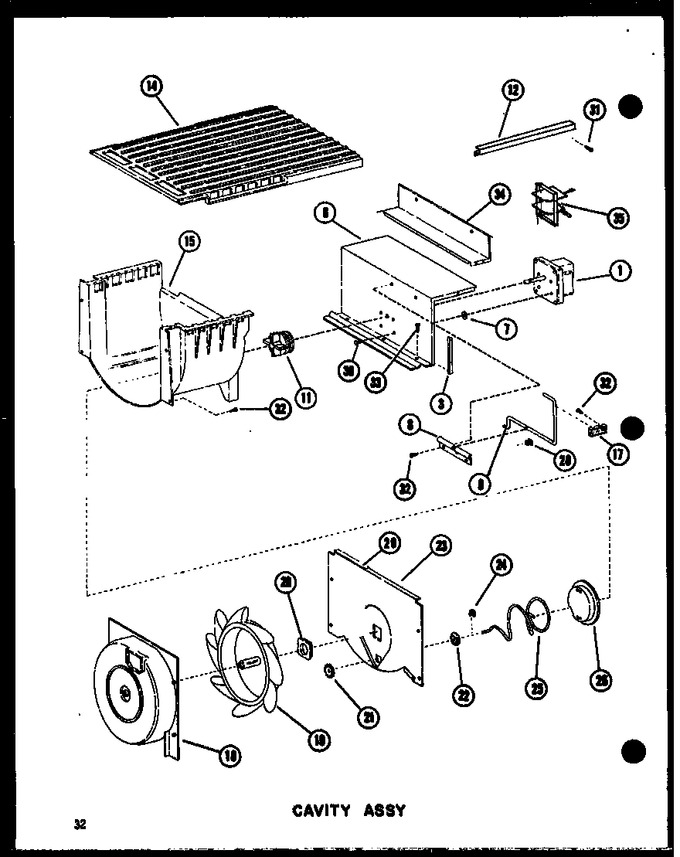

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8831001 | Motor |
|
- | |||||
| 3 | A3030302 | Gasket |
|
- | |||||
| 6 | D7393401 | Rear Chassis |
|
- | |||||
| 7 | M0272504 | Washer |
|
- | |||||
| 8 | B5697602 | Holder-shut Off Arm |
|
- | |||||
| 9 | C8824301 | Shut Off Arm |
|
- | |||||
| 11 | C8810601 | Drive Link |
|
- | |||||
| 12 | C8808401 | Rail, Chassis |
|
- | |||||
| 14 | D7182702 | Shelf, Bottom, Upper Fz |
|
- | |||||
| 15 | D7444501 | Ice Bucket A |
|
- | |||||
| 17 | C8824401 | Arm-detent |
|
- | |||||
| 18 | D7192602 | Cover, Lift Wheel A |
|
- | |||||
| 19 | D7192701 | Wheel-lift A |
|
- | |||||
| 20 | B5698401 | Bushing A |
|
- | |||||
| 21 | B5787301 | Helix & Pin-kit |
|
- | |||||
| 22 | B5700501 | Bushing A |
|
- | |||||
| 23 | D7182001 | Partition Panel A |
|
- | |||||
| 24 | M0274601 | Ring-retaining A |
|
- | |||||
| 25 | C8812501 | Helix & Pin-kit |
|
- | |||||
| 26 | C3692901 | End Cap-helix A |
|
- | |||||
| 28 | A0288701 | Grommet |
|
- | |||||
| 29 | A3221801 | Strip A |
|
- | |||||
| 30 | M0202528 | Screw |
|
- | |||||
| 31 | M0253916 | Screw |
|
- | |||||
| 32 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 33 | WP3390631 | Screw (Replaces: M0216729) |
|
$ 8.25 | |||||
| 34 | C8839501 | I M Bracket |
|
- | |||||
| 35 | C8830901 | Drive Motor Heater |
|
- |
