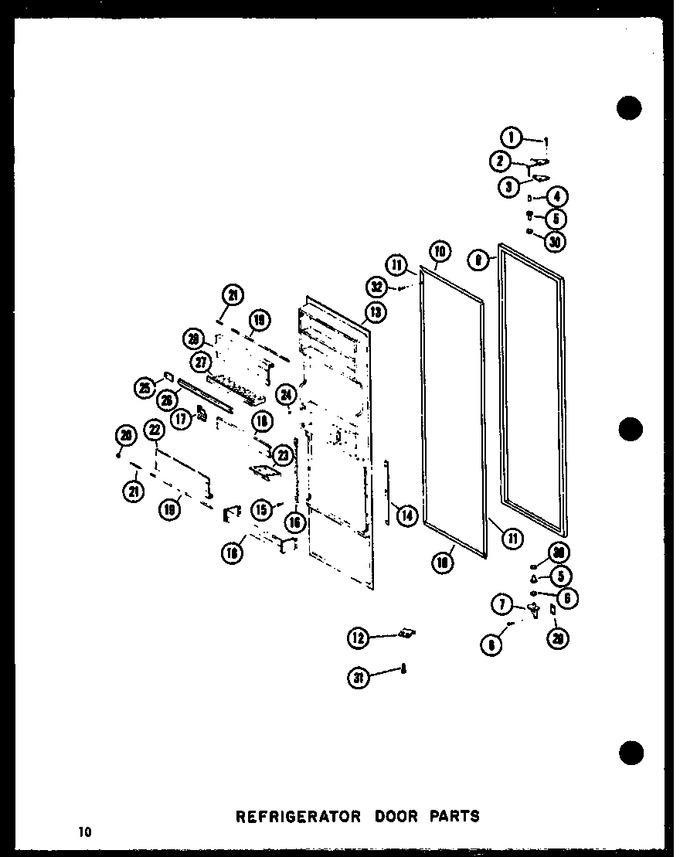

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0254331 | Screw |
|
- | |||||
| 2 | C8816602 | Hinge-right |
|
- | |||||
| 3 | A3270303 | Shim Kit |
|
- | |||||
| 3 | A3270301 | Shim, Top Hinge |
|
- | |||||
| 3 | A3270302 | Shim-top Hinge K |
|
- | |||||
| 4 | A3132401 | Bushing |
|
- | |||||
| 5 | C8852202 | Bearing, Hinge |
|
- | |||||
| 5 | C8852201 | Bearing-hinge |
|
- | |||||
| 6 | M0274013 | Washer K |
|
- | |||||
| 6 | M0274014 | Washer K |
|
- | |||||
| 7 | D7250103 | Hinge |
|
- | |||||
| 8 | M0246159 | Screw |
|
- | |||||
| 9 | D7092602 | D7092602q |
|
- | |||||
| 10 | D7025102 | Retainer Gasket |
|
- | |||||
| 11 | D7025101 | Retainer |
|
- | |||||
| 12 | A3139801 | Stop Door |
|
- | |||||
| 13 | D7181004 | Inner Dr Panel Ref |
|
- | |||||
| 14 | A3133001 | Tap Strip-ladder |
|
- | |||||
| 15 | M0213517 | Screw K |
|
- | |||||
| 16 | C3623101 | Ladder |
|
- | |||||
| 17 | B5631705 | Support - Cream Lh |
|
- | |||||
| 17 | B5631706 | Support- -cream Rh |
|
- | |||||
| 18 | R0181101 | Retainer Assy |
|
- | |||||
| 18 | D7415704 | Retainer |
|
- | |||||
| 19 | A3056205 | Rod A |
|
- | |||||
| 20 | A3057004 | Spacer K |
|
- | |||||
| 20 | A3057003 | Spacer Butter Door |
|
- | |||||
| 21 | A3067001 | Spring K |
|
- | |||||
| 21 | A3065201 | Spring A/k |
|
- | |||||
| 22 | C8832801 | Butter Door |
|
- | |||||
| 23 | D3799801 | Butter Tray |
|
- | |||||
| 24 | A3059003 | Bumper |
|
- | |||||
| 25 | B0530006 | Support K |
|
- | |||||
| 26 | B8302601 | Retainer, Egg Tray |
|
- | |||||
| 27 | D7025703 | Egg Tray |
|
- | |||||
| 28 | C8833501 | Utility Door |
|
- | |||||
| 29 | A3143601 | Shim |
|
- | |||||
| 29 | A3143602 | Shim |
|
- | |||||
| 29 | A3143603 | Shim |
|
- | |||||
| 30 | M0500902 | O Ring |
|
- | |||||
| 31 | M0214028 | Screw |
|
- | |||||
| 32 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 |
