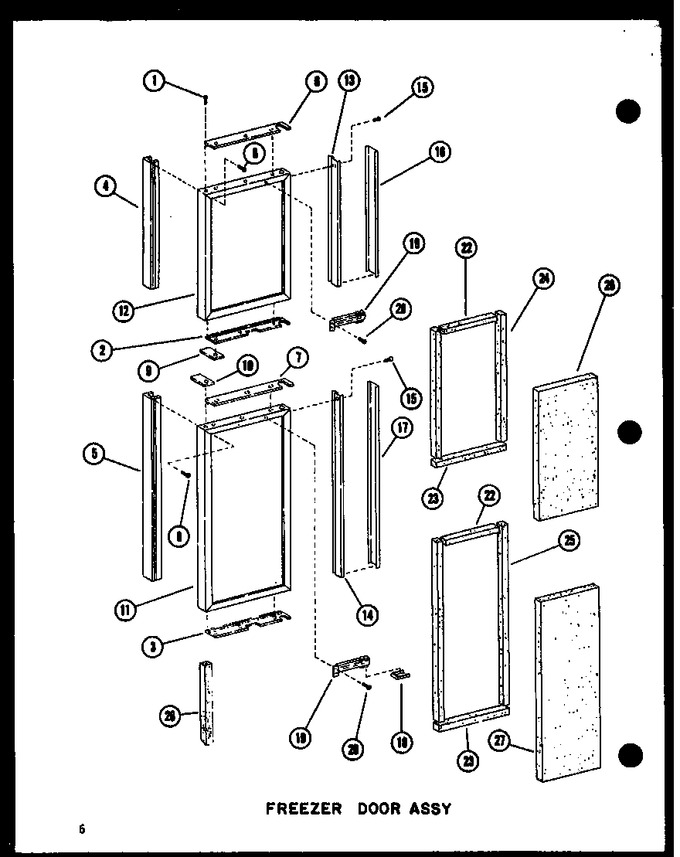

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0214028		Screw		Appelez-nous	-
2	D7212305		Trim-door		Appelez-nous	-
3	D7204904		Trim-door		Appelez-nous	-
4	C8833403		Handle		Appelez-nous	-
5	C8833402		Handle		Appelez-nous	-
6	D7204902		Trim-door		Appelez-nous	-
7	D7188702		Trim-door		Appelez-nous	-
8	M0254129		Screw		Appelez-nous	-
9	C3693202		End Cap-handle		Appelez-nous	-
10	C3693201		End Cap-handle		Appelez-nous	-
11	D7409408		Dr Lwr Fr A-t Sdi25e		Appelez-nous	-
11	D7409409		Door Lwr Fr G-t-sdi25e		Appelez-nous	-
11	D7409410		Door Lr Fr L-t-sdi25e		Appelez-nous	-
11	D7409407		Door Lr Fr C-t-sdi25e		Appelez-nous	-
11	D7409406		Door Lr Fr W-t-sdi25e		Appelez-nous	-
12	D7409413		Door Up Fr A-t-sdi25e		Appelez-nous	-
12	D7409414		Door Up Fr G-t-sdi25e		Appelez-nous	-
12	D7409412		Door Up Fr C-t-sdi25e		Appelez-nous	-
12	D7409415		Door Up Fr L-t Sdi22		Appelez-nous	-
12	D7409411		Door Up Fr W-t-sdi25e		Appelez-nous	-
13	C3592909		Retainer		Appelez-nous	-
14	C3592910		Retainer		Appelez-nous	-
15	M0211716		Screw A K		Appelez-nous	-
16	B0599006		Trim		Appelez-nous	-
17	B0599007		Trim		Appelez-nous	-
18	B5644001		Cover		Appelez-nous	-
19	D7022901		Door Closure		Appelez-nous	-
20	M1252001		Screw		Appelez-nous	-
22	B5629006		Insulation		Appelez-nous	-
23	B5629003		Insulation		Appelez-nous	-
24	B5629016		Insulation		Appelez-nous	-
25	B5629022		Insulation		Appelez-nous	-
26	B5612009		Insulation		Appelez-nous	-
27	B5612010		Insulation		Appelez-nous	-
28	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
