SELECT A DIAGRAM

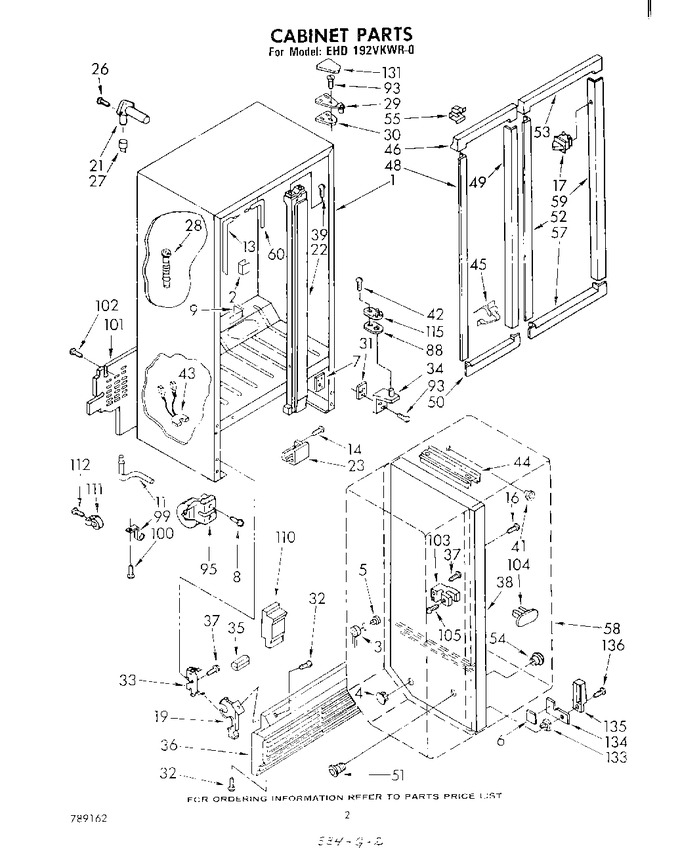

02 - Cabinet
03 - Air Flow And Control
04 - Liner
05 - Door , Lit/optional
06 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 510291 | Clip, Heater (2) |
|
- | |||||
| 3 | 481658 | Wiring, Liner (ice Maker) |
|
- | |||||
| 4 | 534927 | Plug, Hole |
|
- | |||||
| 5 | 850738 | Cap, Receptacle |
|
- | |||||
| 6 | 992358 | Pad, Foam |
|
- | |||||
| 7 | 836162 | Plate, Tap (2) |
|
- | |||||
| 8 | 488681 | Screw, 5/16-24 X 1-1/4 |
|
- | |||||
| 9 | 935663 | Clip, Stile Heater (6) |
|
- | |||||
| 11 | 841646 | Extension Fitting |
|
- | |||||
| 13 | 934447 | Heater, Stile |
|
- | |||||
| 14 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 16 | WP489069 | Screw, 8 X 1/2 (Replaces: 488874) |
|
Immediately | $ 8.40 | ||||
| 17 | W11384469 | Switch, Light (2) (Replaces: 549702) |
|
Immediately | $ 39.09 | ||||
| 19 | WP944224 | Support, Grille (2) (Replaces: 944224) |
|
$ 7.94 | |||||
| 21 | 653113 | Fitting, Water Tube |
|
- | |||||
| 22 | 985979 | Center Rail & Bracket Assembly (white) |
|
- | |||||
| 22 | 989926 | Center Rail & Bracket Assembly (new Avocado) |
|
- | |||||
| 22 | 989927 | Center Rail & Bracket Assembly (almond) |
|
- | |||||
| 22 | 1100362 | Center Rail & Bracket Assembly (toast) |
|
- | |||||
| 22 | 989925 | Center Rail & Bracket Assembly (golden Harvest) |
|
- | |||||
| 22 | 1100363 | Center Rail & Bracket Assembly (platinum) |
|
- | |||||
| 22 | 989924 | Center Rail & Bracket Assembly (coffee) |
|
- | |||||
| 23 | 549947 | Box, Junction |
|
- | |||||
| 26 | WP98165 | Screw, 8 X 5/8 (2) (Replaces: 488401) |
|
$ 8.57 | |||||
| 27 | WP487996 | Cap, Plastic (Replaces: 487996) |
|
$ 8.67 | |||||
| 28 | 836068 | Drain Fitting |
|
- | |||||
| 29 | 842039 | Hinge, Top |
|
- | |||||
| 30 | 836192 | Shim, Hinge Top |
|
- | |||||
| 31 | 836196 | Shim, Hinge (bottom) (repair) (.030) |
|
- | |||||
| 32 | 489085 | Screw, 8-22 X 5/16 |
|
- | |||||
| 33 | 989068 | Clip, Grille |
|
- | |||||
| 34 | 986763 | Hinge, Butt R.h. |
|
- | |||||
| 34 | 986764 | Hinge, Butt L.h. |
|
- | |||||
| 35 | 546131 | Bumper (2) |
|
- | |||||
| 36 | 1100307 | Exterior, Grille (toast) |
|
- | |||||
| 36 | 1100308 | Exterior, Grille (platinum) |
|
- | |||||
| 36 | 944237 | Grille, Exterior (almond) |
|
- | |||||
| 36 | 944235 | Grille, Exterior (golden Harvest) |
|
- | |||||
| 36 | 944236 | Grille, Exterior (new Avocado) |
|
- | |||||
| 36 | 944234 | Grille, Exterior (coffee) |
|
- | |||||
| 36 | 944233 | Grille, Exterior (white) |
|
- | |||||
| 37 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 38 | 985463 | Divider Mullion |
|
- | |||||
| 39 | WP308685 | Screw (repair) (4) (Replaces: 488258) |
|
Immediately | $ 7.87 | ||||
| 39 | 488624 | Screw, 8 X 3/4 (4) |
|
- | |||||
| 41 | 851020 | Grommet, Wiring |
|
- | |||||
| 42 | 488913 | Screw (repair) |
|
- | |||||
| 42 | WP486579 | Screw, 8-32 X 1/4 (Replaces: 487983) |
|
$ 7.89 | |||||
| 43 | 548734 | Wiring, Water Valve |
|
- | |||||
| 44 | 842435 | Gasket, Divider |
|
- | |||||
| 45 | 849479 | Clip, Retainer (4) |
|
- | |||||
| 46 | 843334 | Trim, Breaker (top) |
|
- | |||||
| 48 | 836174 | Trim, Breaker L.s. |
|
- | |||||
| 49 | 836108 | Trim, Breaker R.s. |
|
- | |||||
| 50 | 836447 | Trim, Breaker (bottom) |
|
- | |||||
| 51 | 843888 | Retainer, Insert |
|
- | |||||
| 52 | 836213 | Trim, Breaker (l.s.) |
|
- | |||||
| 53 | 843335 | Trim, Breaker (top) |
|
- | |||||
| 54 | 843887 | Insert, Hole |
|
- | |||||
| 55 | 836090 | Retainer, Breaker Trim (9) |
|
- | |||||
| 57 | 836446 | Trim, Breaker (bottom) |
|
- | |||||
| 58 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 59 | 842178 | Trim, Breaker (r.s.) |
|
- | |||||
| 60 | 851874 | Heater, Mullion |
|
- | |||||
| 88 | 987179 | Shim, Door Closer |
|
- | |||||
| 93 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 93 | 488949 | Screw, 12-14 X 3/4 (repair) |
|
- | |||||
| 95 | 981127 | Roller, Front (2) |
|
- | |||||
| 99 | 841648 | Clip, Drain |
|
- | |||||
| 100 | 488978 | Screw, 8-15 X 3/8 |
|
- | |||||
| 101 | 850457 | Cover, Compartment |
|
- | |||||
| 102 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 103 | 836079 | Stabilizer, Mullion |
|
- | |||||
| 104 | 836080 | Stabilizer, Rail |
|
- | |||||
| 105 | 488280 | Screw, 8 X 3/4 |
|
- | |||||
| 110 | 836372 | Insert, Baffle |
|
- | |||||
| 111 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 112 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 115 | WPW10329686 | Door Closer (Replaces: 986759) |
|
Immediately | $ 5.90 | ||||
| 131 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 131 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 131 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 131 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 131 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 131 | 989897 | Hinge Cover (new Avocado) |
|
- | |||||
| 131 | 842010 | Hinge Cover (white) |
|
- | |||||
| 133 | 842339 | Grommet |
|
- | |||||
| 134 | 984102 | Slide Meat Pan, Cold Control |
|
$ 5.02 | |||||
| 135 | 985468 | Escutcheon, Meat Pan (cold Control) |
|
- | |||||
| 136 | 486214 | Screw 8-15 X 1/2 |
|
- |
