02 - Cabinet


03 - Air Flow And Control


04 - Liner


05 - Door , Lit/optional


06 - Unit

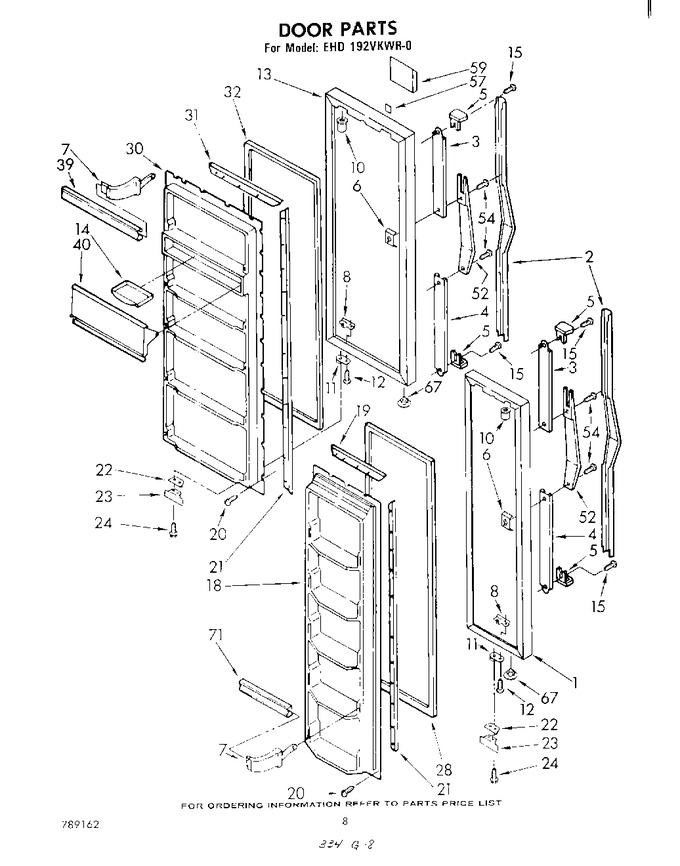

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	936639		Door, Freezer (white)		Appelez-nous	-
1	1100367		Freezer, Door Panel (platinum)		Appelez-nous	-
1	1100366		Freezer, Door Panel (toast)		Appelez-nous	-
1	936643		Door, Freezer (almond)		Appelez-nous	-
1	936641		Door, Freezer (golden Harvest)		Appelez-nous	-
1	936642		Door, Freezer (new Avocado)		Appelez-nous	-
1	936640		Door, Freezer (coffee)		Appelez-nous	-
2	845889		Insert, Handle (new Avocado)		Appelez-nous	-
2	845888		Insert, Handle (white, Coffee, & Almond)		Appelez-nous	-
2	1101294		Insert, Handle (platinum)		Appelez-nous	-
2	1101293		Insert, Handle (toast)		Appelez-nous	-
2	845890		Insert, Handle (golden Harvest)		Appelez-nous	-
3	987008		Retainer, Top		Appelez-nous	-
4	987010		Retainer, Bottom		Appelez-nous	-
5	987006		Cap, Handle (2)		Appelez-nous	-
6	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.88
7	WP849996		Cap, End (for Platinum Model Only)   (Replaces: 849996)				$ 7.95
7	WP849996		Cap, End (10)   (Replaces: 943824)				$ 7.95
8	988402		Tap Plate, Door Closer		Appelez-nous	-
10	509929		Cap, Hinge (2)		Appelez-nous	-
11	4318165		Cam, Door Closer   (Replaces: 986758)			Immediately	$ 29.74
12	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
13	1100364		Refrigerator, Door Panel (toast)		Appelez-nous	-
13	1100365		Refrigerator, Door Panel (platinum)		Appelez-nous	-
13	936634		Door, Refrigerator (golden Harvest)		Appelez-nous	-
13	936636		Door, Refrigerator (almond)		Appelez-nous	-
13	936635		Door, Refrigerator (new Avocado)		Appelez-nous	-
13	936633		Door, Refrigerator (coffee)		Appelez-nous	-
13	936632		Door, Refrigerator (white)		Appelez-nous	-
14	520747		Tray, Butter		Appelez-nous	-
15	488928		Screw, 10-32 X 5/8		Appelez-nous	-
18	943828		Panel, Interior		Appelez-nous	-
18	937457		Panel, Interior (for Platinum Model Only)		Appelez-nous	-
19	836122		Retainer, Top & Bottom (2)		Appelez-nous	-
20	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
20	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
21	836120		Retainer, Side Gasket (2)		Appelez-nous	-
22	988421		Shim		Appelez-nous	-
23	988420		Bracket, Door Stop		Appelez-nous	-
24	488549		Screw, 8 X 5/8		Appelez-nous	-
28	2188405A		Gasket, Freezer Door   (Replaces: 943221)				$ 368.63
28	2188405A		Gasket, Freezer Door (for Platinum Model Only)   (Replaces: 939566)				$ 368.63
30	981428		Panel, Interior (for Platinum Model Only)		Appelez-nous	-
30	943827		Panel, Interior		Appelez-nous	-
31	836121		Retainer, Top & Bottom Gasket (2)		Appelez-nous	-
32	2188404A		Gasket, Refrigerator Door   (Replaces: 943220)				$ 269.26
32	2188404A		Gasket, Refrigerator Door (for Platinum Model Only)   (Replaces: 939565)				$ 269.26
39	849806		Trim, Shelf (5)		Appelez-nous	-
40	935322		Door, Compartment		Appelez-nous	-
52	987009		Handle		Appelez-nous	-
54	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.72
57	991259		Tape		Appelez-nous	-
59	945121		Nameplate		Appelez-nous	-
67	534927		Plug, Hole (2)		Appelez-nous	-
71	936844		Shelf (5)		Appelez-nous	-
71	350942		Primer White (13 Oz. Spray Can)				$ 94.14
71	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
71	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
71	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
71	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
71	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
71	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
71	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
71	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
71	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
71	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
71	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
71	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
71	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
71	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
71	261888		Enamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
71	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
71	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
71	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
71	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
71	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
71	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
71	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
71	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
71	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
71	799908		Silicone (spray)		Appelez-nous	-
71	944001		Guide, Use & Care		Appelez-nous	-
71	1100052		Consumer Buy Guide		Appelez-nous	-
71	945511		Service & Wiring Sheet		Appelez-nous	-
71	1100053		Energy Label		Appelez-nous	-
71	789162		List, Parts		Appelez-nous	-
71	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
71	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
71	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
71	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
71	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
71	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
71	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
71	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
71	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
