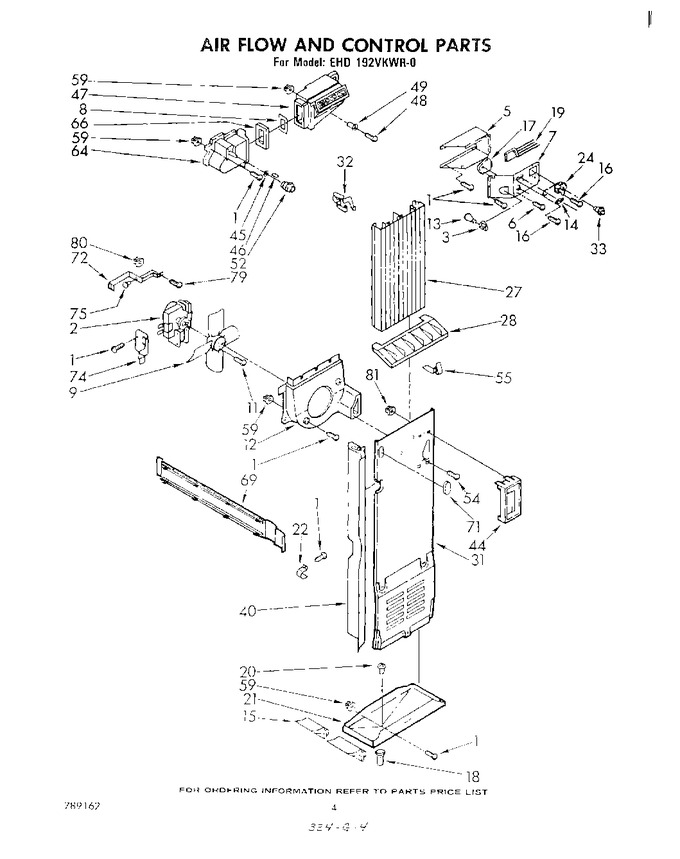

03 - Air Flow And Control
04 - Liner
05 - Door , Lit/optional
06 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 2 | SM999 | Motor, Fan (Replaces: 549212) |
|
Immediately | $ 30.26 | ||||
| 3 | 4387478 | Socket (Replaces: 851067) |
|
Immediately | $ 115.67 | ||||
| 5 | 984550 | Box, Control |
|
- | |||||
| 6 | WP3388228 | Screw, 6-20 X 3/8 (2) (Replaces: 488911) |
|
$ 7.30 | |||||
| 7 | 934045 | Front, Control Box |
|
- | |||||
| 8 | 842394 | Gasket, Air Diffuser |
|
- | |||||
| 9 | 839859 | Blade, Fan |
|
- | |||||
| 11 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 12 | 991285 | Scroll Fan |
|
- | |||||
| 13 | 8009 | Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 14 | 938049 | Bracket, Switch |
|
- | |||||
| 15 | 845564 | Gasket, Drain Pan |
|
- | |||||
| 16 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 11.40 | |||||
| 17 | W10822278 | Timer, Defrost (10 Hr.) (Replaces: 943435) |
|
Immediately | $ 34.44 | ||||
| 18 | 841770 | Fitting, Drain |
|
- | |||||
| 19 | 481782 | Wiring Cabinet (defrost Timer) |
|
- | |||||
| 20 | 842259 | Cap, Drain |
|
- | |||||
| 21 | 842404 | Pan, Drain |
|
- | |||||
| 22 | 836077 | Clamp, Tube |
|
- | |||||
| 24 | WP4317800 | Thermostat & Barrier (Replaces: 946644) |
|
Immediately | $ 278.68 | ||||
| 27 | 842399 | Duct, Air |
|
- | |||||
| 28 | 836144 | Cover, End Cap |
|
- | |||||
| 31 | 984466 | Cover, Evaporator |
|
- | |||||
| 32 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.94 | |||||
| 33 | 836482 | Knob, Thermostat |
|
- | |||||
| 40 | 841606 | Gasket (2) |
|
- | |||||
| 44 | 835740 | Grille |
|
- | |||||
| 45 | 938439 | Retainer, Damper |
|
- | |||||
| 46 | 837444 | Knob, Retainer |
|
- | |||||
| 47 | 946145 | Air Diffuser Assembly |
|
- | |||||
| 48 | 488357 | Screw, 8 X 1-1/4 |
|
- | |||||
| 49 | 836667 | Spacer |
|
- | |||||
| 52 | 837445 | Knob, Temperature Control (includes Illus. 46) |
|
- | |||||
| 54 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 8.28 | ||||
| 55 | 987954 | Baffle, Air |
|
- | |||||
| 59 | 842339 | Grommet |
|
- | |||||
| 64 | 841269 | Scoop, Air |
|
- | |||||
| 66 | 844871 | Gasket Scoop |
|
- | |||||
| 69 | 821142 | Cover, Exhanger (Replaces: 836514) |
|
$ 68.91 | |||||
| 71 | 659776 | Plug, Hole |
|
- | |||||
| 72 | 548264 | Bracket (single) |
|
- | |||||
| 74 | 548263 | Bracket (double) |
|
- | |||||
| 75 | 548268 | Grommet (3) |
|
- | |||||
| 79 | WP489069 | Screw (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 80 | 538449 | Grommet (2) |
|
- | |||||
| 81 | 848445 | Grommet |
|
- |
