SELECT A DIAGRAM

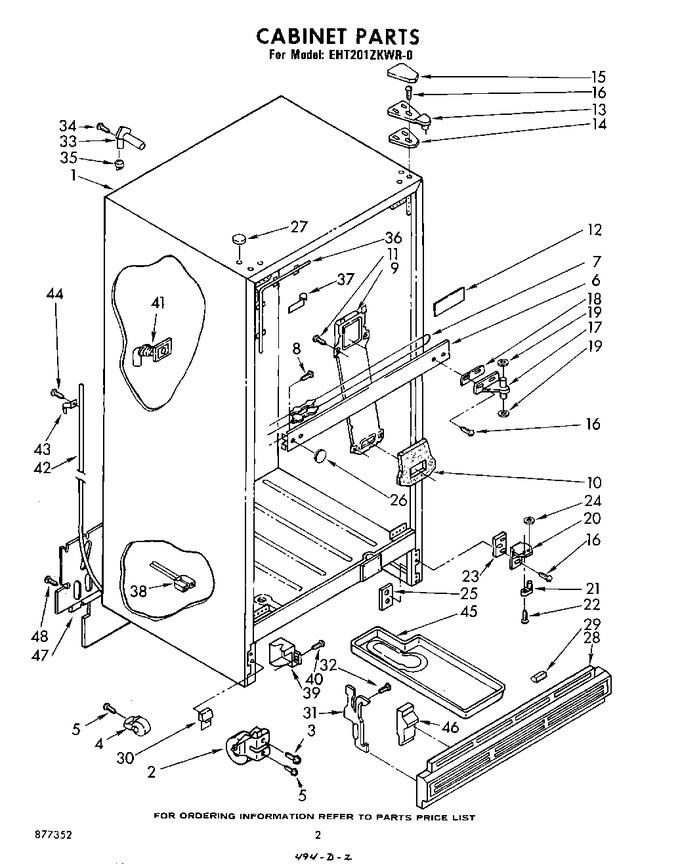

02 - Cabinet


03 - Liner


04 - Breaker And Partition , Not Illustrated


05 - Unit


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 40.17
5	488454		Screw, 1/4-28 X 1/2 (4)		Appelez-nous	-
6	989908		Center Rail (coffee)		Appelez-nous	-
6	989909		Center Rail (golden Harvest)		Appelez-nous	-
6	989911		Center Rail (almond)		Appelez-nous	-
6	989910		Center Rail (new Avocado)		Appelez-nous	-
6	836067		Center Rail (white)		Appelez-nous	-
7	989256		Heater, Mullion		Appelez-nous	-
8	488624		Screw, 8 X 3/8 (2)		Appelez-nous	-
8	487470		Screw (repair)		Appelez-nous	-
9	841710		Duct, Air		Appelez-nous	-
10	984571		Air Duct Outlet		Appelez-nous	-
11	WP488488		Screw, 8 X 7/8 (3)   (Replaces: 488489)				$ 7.68
12	985316		Seal, Strip		Appelez-nous	-
13	842039		Hinge, Top		Appelez-nous	-
14	836192		Shim, Hinge		Appelez-nous	-
15	989897		Hinge Cover (new Avocado)		Appelez-nous	-
15	989194		Hinge Cover (almond)		Appelez-nous	-
15	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
15	989895		Hinge, Cover (coffee)		Appelez-nous	-
15	842010		Hinge Cover (white)		Appelez-nous	-
16	WP999367		Screw, 10-32 X 3/4 (3)   (Replaces: 489105)				$ 7.86
16	488949		Screw (repair)		Appelez-nous	-
17	836153		Hinge, Center		Appelez-nous	-
18	836155		Shim, Hinge Center		Appelez-nous	-
19	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.19
20	836159		Hinge, Bottom		Appelez-nous	-
21	654366		Hinge Pin, Bottom				$ 27.15
22	488714		Screw 10-32 X 5/16				$ 5.48
23	836196		Shim, Bottom Hinge		Appelez-nous	-
24	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.91
25	836162		Tap Plate		Appelez-nous	-
26	989881		Hole Plug (coffee)		Appelez-nous	-
26	989883		Hole Plug (new Avocado)		Appelez-nous	-
26	989193		Hole, Plug (almond)		Appelez-nous	-
26	989882		Hole Plug (golden Harvest)		Appelez-nous	-
26	835974		Hole, Plug (white)		Appelez-nous	-
27	989195		Hole Plug (almond)		Appelez-nous	-
27	842031		Hole Plug (white)		Appelez-nous	-
27	989875		Hole Plug (coffee)		Appelez-nous	-
27	989876		Hole Plug (golden Harvest)		Appelez-nous	-
27	989877		Hole Plug (new Avocado)		Appelez-nous	-
28	989943		Exterior Grille (new Avocado)		Appelez-nous	-
28	989941		Exterior Grille (coffee)		Appelez-nous	-
28	841670		Exterior Grille (white)		Appelez-nous	-
28	989945		Exterior Grille (golden Harvest)		Appelez-nous	-
28	989947		Exterior Grille (almond)		Appelez-nous	-
29	546131		Bumper, Grille		Appelez-nous	-
30	989931		Corner, Filler (almond)		Appelez-nous	-
30	838535		Corner, Filler (white)		Appelez-nous	-
30	989928		Corner, Filler (coffee)		Appelez-nous	-
30	989929		Corner, Filler (golden Harvest)		Appelez-nous	-
30	989930		Corner, Filler (new Avocado)		Appelez-nous	-
31	844614		Grille, Support		Appelez-nous	-
32	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
33	WP2196157		Fitting, Water Tube   (Replaces: 841907)			Immediately	$ 11.99
34	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.00
35	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.26
36	936075		Heater, Stile		Appelez-nous	-
37	935663		Retainer, Clip		Appelez-nous	-
38	548734		Wire Assembly (water Valve)		Appelez-nous	-
39	549947		Box, Junction		Appelez-nous	-
40	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.79
41	841687		Drain Fitting		Appelez-nous	-
42	8316810		Tube, Drain   (Replaces: 509638)				$ 119.73
43	836077		Tube Clamp		Appelez-nous	-
44	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
45	842041		Tray, Evaporating				$ 64.92
46	836372		Insert, Air Baffle		Appelez-nous	-
47	850459		Cover, Unit Compartment		Appelez-nous	-
48	WPW10141645		Screw, 8 X 1/2 (6)   (Replaces: 489084)				$ 7.67
