02 - Cabinet


03 - Liner


04 - Breaker And Partition , Not Illustrated


05 - Unit


06 - Door

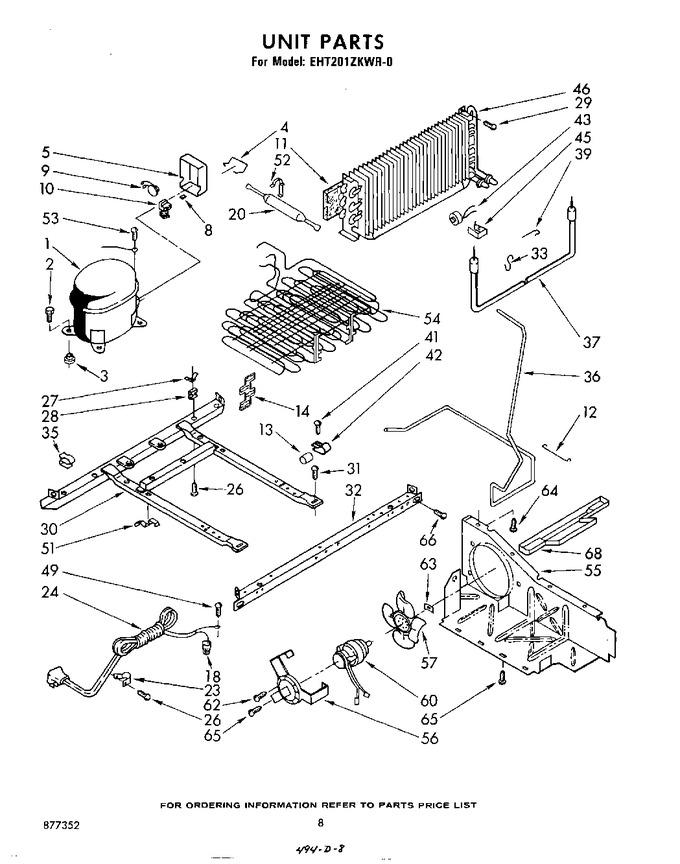

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	464081		Compressor		Appelez-nous	-
2	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
3	547283		Grommet (4)		Appelez-nous	-
4	531318		Spring		Appelez-nous	-
5	549945		Case, Relay		Appelez-nous	-
8	547272		Bumper		Appelez-nous	-
9	549041		Overload		Appelez-nous	-
10	989662		Relay		Appelez-nous	-
10	989661		Relay (alternate)		Appelez-nous	-
11	981736		Baffle, Air		Appelez-nous	-
12	850156		Guard, Fan		Appelez-nous	-
13	510769		Dampener (2)		Appelez-nous	-
14	987210		Spacer Condenser (4)		Appelez-nous	-
18	227991		Wire Connector		Appelez-nous	-
20	W10843121		Drier   (Replaces: 978246)			Immediately	$ 52.57
23	549193		Clamp-cord				$ 13.39
24	850626		Cord, Service		Appelez-nous	-
26	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
27	548738		Clamp (4)		Appelez-nous	-
28	548737		Grommet (4)		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 488687)			Immediately	$ 14.06
30	548654		Frame		Appelez-nous	-
31	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
32	548662		Rail, Front		Appelez-nous	-
33	851358		Support, Heater		Appelez-nous	-
35	548745		Clip, Wire (2)		Appelez-nous	-
36	943357		Exchanger, Heat		Appelez-nous	-
37	989612		Heater, Defrost		Appelez-nous	-
39	850721		Clip, Heater (2)		Appelez-nous	-
41	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 21.16
42	510716		Clamp (2)		Appelez-nous	-
43	WP4387489		Defrost, Bimetal   (Replaces: 989589)				$ 103.80
43	WP4387489		Defrost, Bimetal (alternate)   (Replaces: 989588)				$ 103.80
45	513584		Clamp		Appelez-nous	-
46	938179		Evaporator		Appelez-nous	-
49	488474		Screw		Appelez-nous	-
51	548744		Clip (2)		Appelez-nous	-
52	548508		Clamp		Appelez-nous	-
53	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
54	481851		Condenser & Precooler		Appelez-nous	-
55	850764		Baffle		Appelez-nous	-
56	548695		Bracket, Motor		Appelez-nous	-
57	989524		Fan, Blade		Appelez-nous	-
60	833697		Motor (alternate)   (Replaces: 851619)			Immediately	$ 88.15
60	R1211		Motor   (Replaces: 851618)				$ 145.61
62	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
63	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.82
64	489050		Screw, 8-32 X 1/2				$ 692.56
65	488624		Screw, 8 X 3/8		Appelez-nous	-
66	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
68	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
68	978030		Valve, Access (3/4``)				$ 130.71
68	978028		Valve, Access (1/2)		Appelez-nous	-
68	978029		Valve Access (5/8``)				$ 93.85
68	989269		Pan, Drip		Appelez-nous	-
68	978026		Valve, Access (5/16``)			Immediately	$ 128.09
68	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
