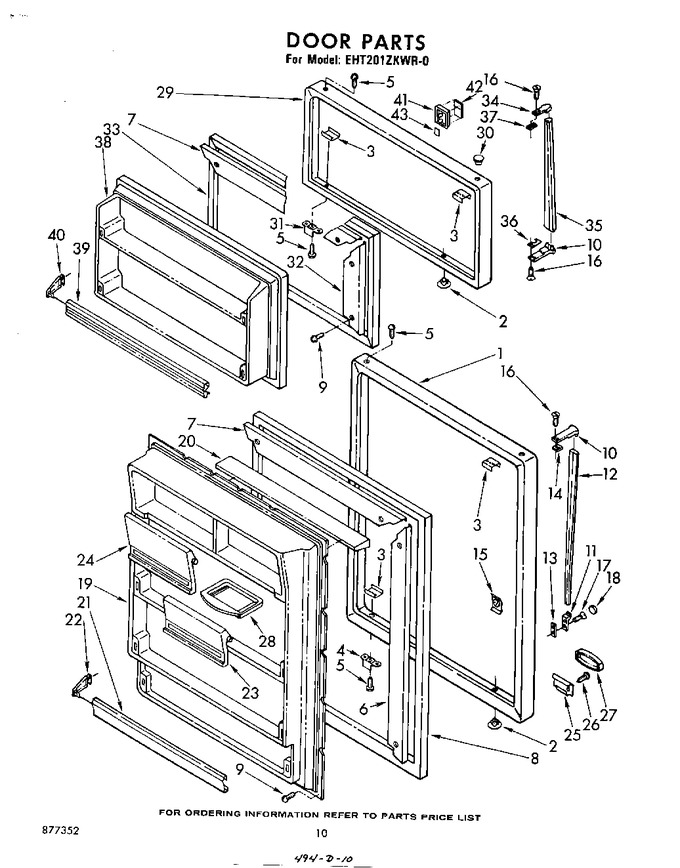

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	940300		Refrigerator Door (golden Harvest)		Appelez-nous	-
1	940302		Refrigerator Door (almond)		Appelez-nous	-
1	940301		Refrigerator Door (new Avocado)		Appelez-nous	-
1	940298		Refrigerator Door (white)		Appelez-nous	-
1	940299		Refrigerator Door (coffee)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
3	940231		Tap Plate		Appelez-nous	-
4	940217		Bracket, Door Stop		Appelez-nous	-
5	488931		Screw (repair)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2 (2)   (Replaces: 488921)			Immediately	$ 7.75
6	836117		Retainer, Gasket Side		Appelez-nous	-
7	836118		Retainer, Gasket Top		Appelez-nous	-
8	2188450A		Door, Gasket Magnetic   (Replaces: 986702)				$ 270.56
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
10	983543		Cap, Handle		Appelez-nous	-
11	WP2183139		Cap, Handle   (Replaces: 983542)			Immediately	$ 49.50
12	982946		Handle, Center		Appelez-nous	-
13	992872		Shim, Handle End		Appelez-nous	-
14	845298		Spacer, Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
16	488923		Screw (repair)		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.49
17	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 7.79
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.22
19	938745		Interior Panel		Appelez-nous	-
20	849802		Support, Door Dike		Appelez-nous	-
21	935919		Trim, Door Shelf		Appelez-nous	-
22	839904		Retainer, Door Trim				$ 5.65
23	942164		Compartment, Door Butter		Appelez-nous	-
24	940708		Compartment, Utility		Appelez-nous	-
25	843213		Clip, Medallion		Appelez-nous	-
26	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
27	989901		Medallion (coffee)		Appelez-nous	-
27	989904		Medallion (almond)		Appelez-nous	-
27	989902		Medallion (new Avocado)		Appelez-nous	-
27	848382		Medallion (white)		Appelez-nous	-
27	989903		Medallion (golden Harvest)		Appelez-nous	-
28	520747		Tray, Butter		Appelez-nous	-
29	939369		Freezer Door (white)		Appelez-nous	-
29	939371		Freezer Door (golden Harvest)		Appelez-nous	-
29	939372		Freezer Door (new Avocado)		Appelez-nous	-
29	939370		Freezer Door (coffee)		Appelez-nous	-
29	939373		Freezer Door (almond)		Appelez-nous	-
30	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
30	989892		Hole Plug (coffee)		Appelez-nous	-
30	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.80
30	989894		Hole Plug (new Avocado)		Appelez-nous	-
30	989196		Hole Plug (almond)		Appelez-nous	-
31	940216		Bracket, Door Stop		Appelez-nous	-
32	836119		Retainer Gasket Side		Appelez-nous	-
33	2188460A		Door Gasket, Magnetic   (Replaces: 986703)				$ 220.49
34	983544		Cap, Handle		Appelez-nous	-
35	982944		Handle, Center		Appelez-nous	-
36	987867		Spacer		Appelez-nous	-
37	848338		Shim, Handle		Appelez-nous	-
38	482558		Interior, Door F.c.		Appelez-nous	-
39	986542		Trim, Door Shelf		Appelez-nous	-
40	WP986540		Retainer, Door Trim   (Replaces: 986540)				$ 7.69
41	849310		Escutcheon, Nameplate		Appelez-nous	-
42	848308		Insert, Nameplate		Appelez-nous	-
43	991259		Tape Strip		Appelez-nous	-
