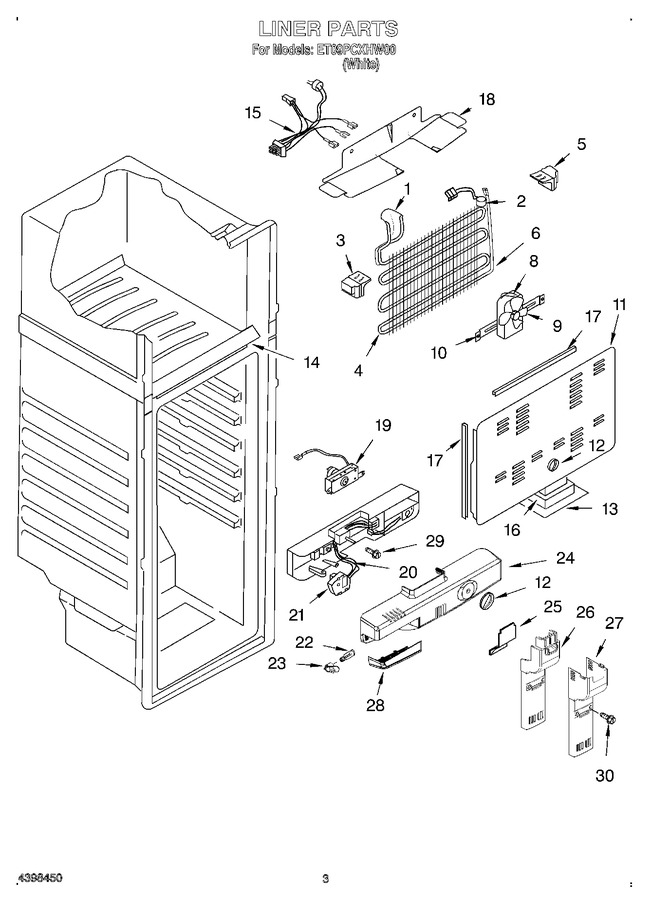

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4318168		Deadener, Sound Evaporator   (Replaces: 8173799)			Immediately	$ 38.79
2	9791833		Clip, Bi-metal		Appelez-nous	-
2	8173841		Bi-metal, Defrost		Appelez-nous	-
3	8173863		Wedge, Mounting Evaporator (left)		Appelez-nous	-
4	8173807		Evaporator		Appelez-nous	-
5	8173862		Wedge, Mounting Evaporator (right)		Appelez-nous	-
6	8173814		Heater, Defrost		Appelez-nous	-
7	8173802		Clip, Defrost Heater		Appelez-nous	-
8	8173812		Motor, Fan		Appelez-nous	-
9	8173850		Blade, Fan		Appelez-nous	-
10	531933		Grommet				$ 5.70
11	8173865		Plenum Assembly (front)		Appelez-nous	-
11	8173864		Plenum Assembly (rear)		Appelez-nous	-
12	8173842		Knob		Appelez-nous	-
13	8173839		Gasket, Air Separator (top)		Appelez-nous	-
13	8173840		Gasket, Air Separator (bottom)		Appelez-nous	-
14	8173832		Floor, Freezer		Appelez-nous	-
15	8173815		Wiring Harness		Appelez-nous	-
16	8173835		Body, Air Separator		Appelez-nous	-
17	8173845		Gasket, Cover (top)		Appelez-nous	-
17	8173846		Gasket, Cover (side)		Appelez-nous	-
18	8173836		Heat Shield		Appelez-nous	-
19	8173877		Thermostat Assy.		Appelez-nous	-
20	8173816		Wiring Harness, Control Box		Appelez-nous	-
21	2176646		Timer, Defost		Appelez-nous	-
22	8173813		Bulb, Light		Appelez-nous	-
23	8173803		Socket, Light		Appelez-nous	-
24	8173868		Control Box		Appelez-nous	-
25	8173831		Body, Air Diffuser (rear)		Appelez-nous	-
26	N/A		Body, Air Diffuser (not Serviced)		Appelez-nous	-
27	8173830		Cover, Diffuser		Appelez-nous	-
28	8173793		Lens, Light		Appelez-nous	-
29	8173882		Screw		Appelez-nous	-
30	8173883		Screw		Appelez-nous	-
