SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Unit

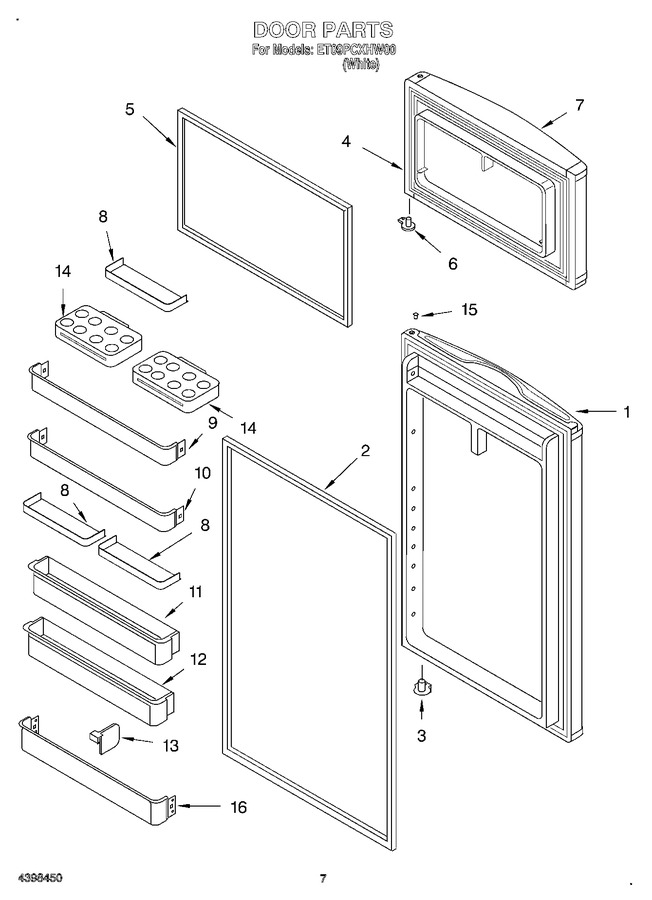

04 - Door


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Refrigerator Door (not Serviced)		Appelez-nous	-
2	8173886		Gasket, R.c.		Appelez-nous	-
3	8173798		Door Stop, R.c.		Appelez-nous	-
4	N/A		Freezer Door (not Serviced)		Appelez-nous	-
5	8173887		Gasket, F.c.		Appelez-nous	-
6	8173795		Door Stop, F.c. (r.h. Swing)		Appelez-nous	-
6	8173806		Door Stop, F.c. (l.h. Swing)		Appelez-nous	-
7	8173860		Plug, Reversible		Appelez-nous	-
8	8173800		Shelf, Flip-up		Appelez-nous	-
9	8173817		Trivet, F.c.		Appelez-nous	-
10	8173818		Trivet, R.c. (shallow)		Appelez-nous	-
11	8173820		Bin, Door Utility		Appelez-nous	-
12	8173824		Bin, Door Bottles		Appelez-nous	-
13	8173809		Retainer, Bottle		Appelez-nous	-
14	8173794		Tray, Egg		Appelez-nous	-
15	8173834		Sleeve, Hinge		Appelez-nous	-
16	8173819		Trivet, R.c. (deep)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
