SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Liner

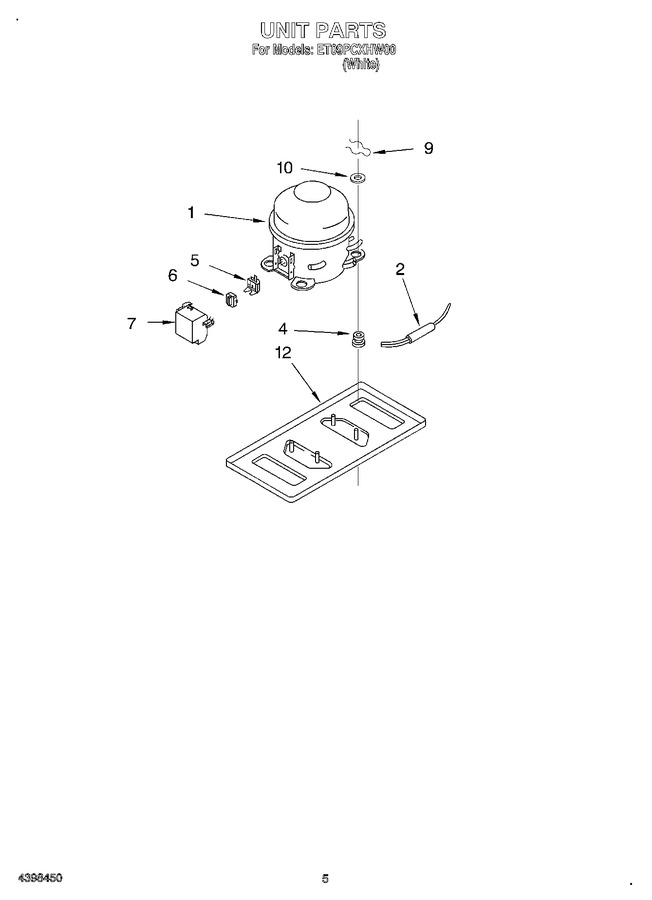

03 - Unit
04 - Door
05 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309988 | Compressor (Replaces: 8173844) |
|
Immediately | $ 587.29 | ||||
| 2 | 4378019 | Drier |
|
- | |||||
| 4 | 2185965 | Grommet (Replaces: 8173837) |
|
- | |||||
| 5 | 4387913 | Overload (Replaces: 2154759) |
|
Immediately | $ 84.39 | ||||
| 6 | WP2262184 | Relay (Replaces: 2154755) |
|
$ 123.46 | |||||
| 7 | WP2162358 | Terminal Cover (Replaces: 2162358) |
|
$ 95.29 | |||||
| 9 | 8173857 | Clip |
|
- | |||||
| 10 | 8173859 | Shim |
|
- |
