SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner


05 - Unit


06 - Shelf , Lit/optional

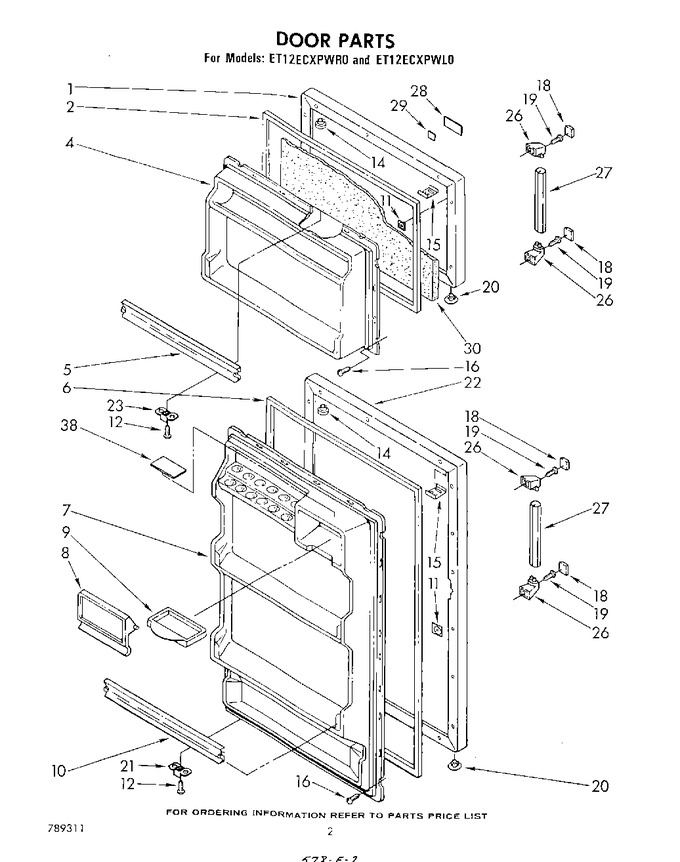

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944938		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (white)		Appelez-nous	-
1	944943		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (almond)		Appelez-nous	-
1	944941		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (harvest Gold)		Appelez-nous	-
1	944940		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (coffee)		Appelez-nous	-
1	944932		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (white)		Appelez-nous	-
1	944934		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (coffee)		Appelez-nous	-
1	944935		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (harvest Gold)		Appelez-nous	-
1	944937		Freezer Door Panel (r.h.) (also\ Order\ Item 30) (almond Freezer Door Panel (l.h.) Also \order\ Item		Appelez-nous	-
2	1104911		Freezer Door Gasket		Appelez-nous	-
4	1104910		Panel, Interior Door (freezer)		Appelez-nous	-
5	1104912		Trim, Door Shelf		Appelez-nous	-
6	1104905		Refrigerator Door Gasket		Appelez-nous	-
7	1104904		Interior Door Panel (refrigerator)		Appelez-nous	-
8	1104999		Butter Door		Appelez-nous	-
9	520747		Tray, Butter		Appelez-nous	-
10	1104907		Trim, Door Shelf (2)		Appelez-nous	-
11	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
12	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
12	488930		Screw (repair)		Appelez-nous	-
14	509929		Cap, Hinge Sleeve (4)		Appelez-nous	-
15	943185		Tap Plate (2)		Appelez-nous	-
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
18	946770		Cover, Screw		Appelez-nous	-
19	488987		Screw, 8 X 1-5/8		Appelez-nous	-
20	989197		Hole Plug (2) (almond)		Appelez-nous	-
20	534927		Hole Plug (2) (white)		Appelez-nous	-
20	989878		Hole Plug (2) (coffee)		Appelez-nous	-
20	989879		Hole Plug (2) (harvest Gold)		Appelez-nous	-
21	944036		Bracket, Door Stop		Appelez-nous	-
22	944915		Refrigerator Door Panel (r.h.) (almond Refrigerator Door Panel (l.h.))		Appelez-nous	-
22	944913		Refrigerator Door Panel (r.h.) (harvest Gold)		Appelez-nous	-
22	944916		Refrigerator Door Panel (r.h.) (white)		Appelez-nous	-
22	944921		Refrigerator Door Panel (r.h.) (almond)		Appelez-nous	-
22	944919		Refrigerator Door Panel (r.h.) (harvest Gold)		Appelez-nous	-
22	944918		Refrigerator Door Panel (r.h.) (coffee)		Appelez-nous	-
22	944910		Refrigerator Door Panel (r.h.) (white)		Appelez-nous	-
22	944912		Refrigerator Door Panel (r.h.) (coffee)		Appelez-nous	-
23	944035		Bracket, Door Stop		Appelez-nous	-
26	946769		Handle, End		Appelez-nous	-
27	1105756		Handle, Center		Appelez-nous	-
28	1104899		Nameplate		Appelez-nous	-
29	991259		Tape		Appelez-nous	-
30	876029		Kit, Foam Slab (required When Replacing Exterior Door)		Appelez-nous	-
38	LIT946486		Label, Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
