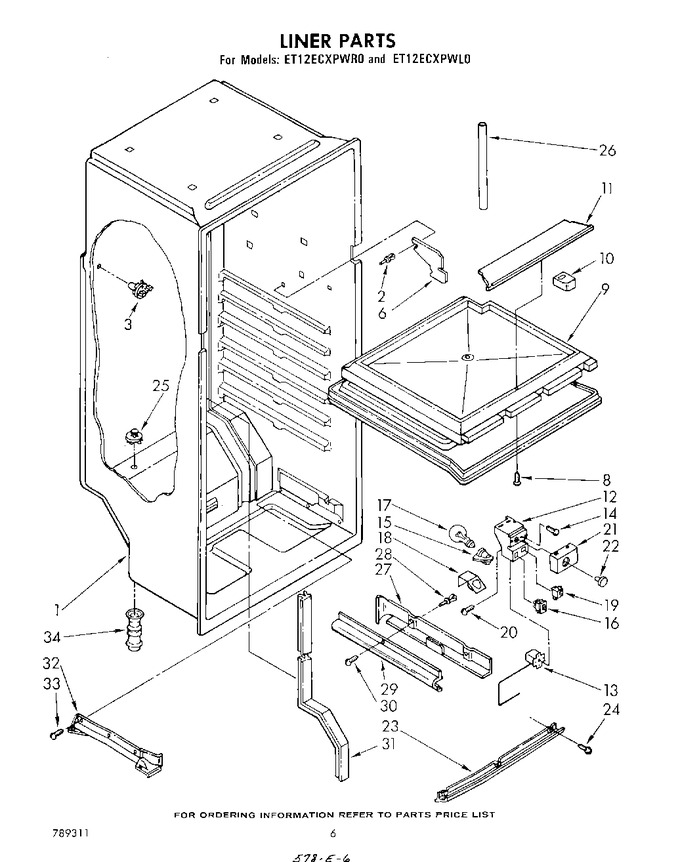

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Plastic Rivet (2)				$ 12.42
3	939989		Screw Anchor		Appelez-nous	-
6	937228		Electric Shield		Appelez-nous	-
8	WP488163		Screw, 8 X 13/16 (2)   (Replaces: 488208)				$ 7.92
9	944883		Insulation, Compartment Separator Assembly		Appelez-nous	-
10	944886		Insulation, Crossover Tube		Appelez-nous	-
11	944889		Breaker Trim, Mullion				$ 340.31
12	939089		Control Box		Appelez-nous	-
13	1100623		Thermostat		Appelez-nous	-
14	WP489128		Screw, 8-32 X 3/8 (2)   (Replaces: 488500)				$ 11.40
15	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 115.67
16	936115		Switch, Power Miser		Appelez-nous	-
17	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
18	937230		Light Shield		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 549702)			Immediately	$ 39.09
20	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
21	937028		Cover, Control Box		Appelez-nous	-
22	845233		Control Knob		Appelez-nous	-
23	944978		Drain Trough		Appelez-nous	-
24	WP488729		Screw, 8 X 1/2 (3)   (Replaces: 488320)			Immediately	$ 8.28
25	934607		Drain, Ferrule Cap		Appelez-nous	-
26	946459		Tube Cover		Appelez-nous	-
27	939957		Wire Cover (rear)		Appelez-nous	-
28	939961		Plastic, Rivet		Appelez-nous	-
29	939960		Wire Cover (front)		Appelez-nous	-
30	486214		Screw 8-15 X 1/2		Appelez-nous	-
31	937032		Tube Entry Cover (rear)		Appelez-nous	-
32	941776		Tube Entry Cover (bottom)		Appelez-nous	-
33	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
34	842256		Fitting, Drain		Appelez-nous	-
