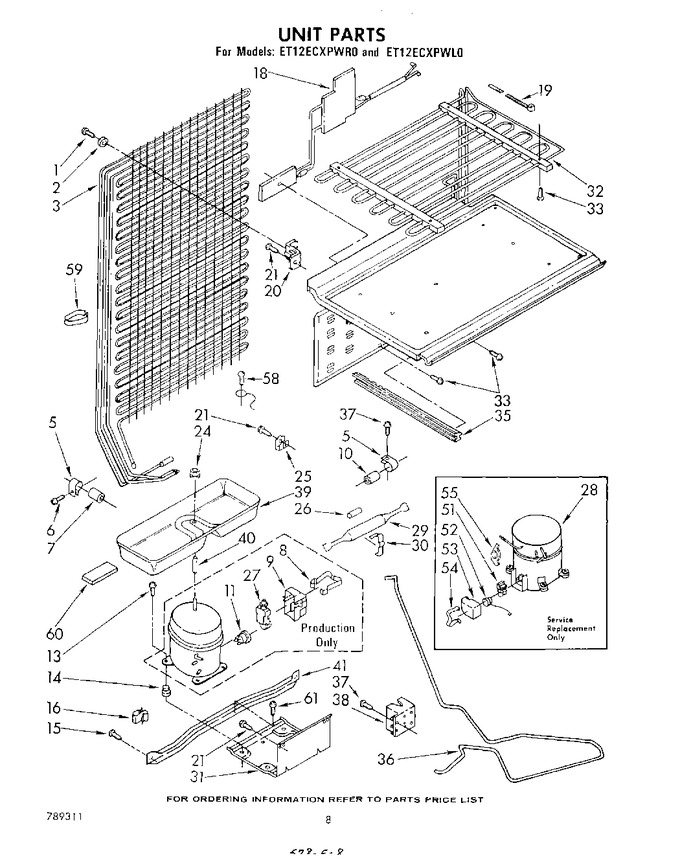

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 3/4 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	943635		Condenser & Precooler Assembly		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
7	938368		Dampener		Appelez-nous	-
8	938384		Strap		Appelez-nous	-
9	1105015		Cover, Terminal		Appelez-nous	-
10	945593		Dampener		Appelez-nous	-
11	941605		Overload		Appelez-nous	-
13	876811		Scre, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
14	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
18	944971		Defrost Heater		Appelez-nous	-
19	851095		Strap (2)		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
24	WP487939		Hex Nut, 1/4-20   (Replaces: 489087)				$ 8.62
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	938385		Relay		Appelez-nous	-
28	482736		Compressor (also Order 482801 Installation Kit) & 876765 Tube Kit)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 943309)			Immediately	$ 57.13
30	547637		Clamp		Appelez-nous	-
31	942860		Unit, Frame		Appelez-nous	-
32	944991		Evaporator Assembly		Appelez-nous	-
33	486214		Screw 8-15 X 1/2		Appelez-nous	-
35	944982		Gasket, Evaporator Lower L.s.				$ 122.60
35	946364		Gasket, Evaporator Lower R.s.		Appelez-nous	-
36	946307		Heat Exchanger		Appelez-nous	-
37	W11624204		Screw, 8-32 X 3/8   (Replaces: 486194)				$ 14.72
38	937068		Box, Junction		Appelez-nous	-
39	935781		Tray, Evaporator		Appelez-nous	-
40	941517		Spacer		Appelez-nous	-
41	945449		Unit Rail		Appelez-nous	-
51	989646		Relay		Appelez-nous	-
52	941778		Overload		Appelez-nous	-
53	549336		Terminal Cover		Appelez-nous	-
54	549342		Strap		Appelez-nous	-
55	549086		Spring, Overload		Appelez-nous	-
58	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
59	942739		Clip, Tube		Appelez-nous	-
60	301774		Pad, Sound		Appelez-nous	-
61	876764		Valve, Access(3/16``)			Immediately	$ 95.92
61	978029		Valve Access (5/8``)				$ 93.85
61	978030		Valve, Access (3/4``)				$ 137.25
61	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
61	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
61	978026		Valve, Access (5/16``)			Immediately	$ 134.49
61	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
61	978028		Valve, Access (1/2)		Appelez-nous	-
