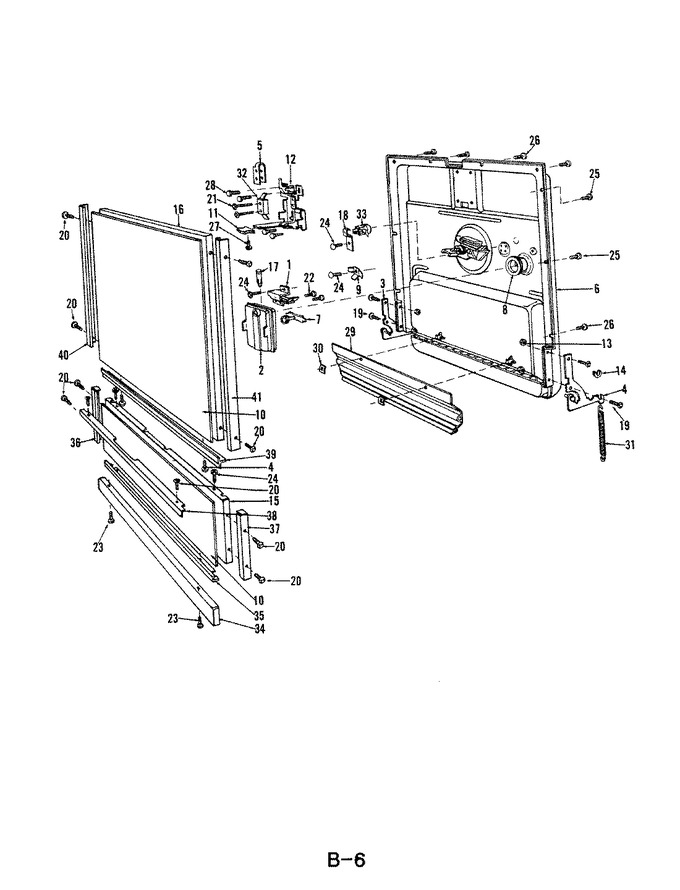

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809109		Bi-metal Asm		Appelez-nous	-
2	806753		Dispenser		Appelez-nous	-
3	805682		Lh Arm		Appelez-nous	-
4	805681		Rh Arm		Appelez-nous	-
5	807450		Switch Cover		Appelez-nous	-
6	809054		Door Assembly		Appelez-nous	-
7	806755		Fill Plug		Appelez-nous	-
8	805631		Grommet		Appelez-nous	-
9	807213		Ground Terminal		Appelez-nous	-
10	808914		Acc Pnl Insert		Appelez-nous	-
11	806398		Latch Knob		Appelez-nous	-
12	807016		Latch Asm		Appelez-nous	-
13	M0282009		Locknut   (Replaces: 808470)				$ 12.66
14	805884		Spring Pad		Appelez-nous	-
15	809108		Access Panel		Appelez-nous	-
16	807262		Outer Panel		Appelez-nous	-
17	806757		Plunger		Appelez-nous	-
18	809097		Retainer		Appelez-nous	-
19	803311		Screw		Appelez-nous	-
20	WP74004005		Screw   (Replaces: 807293)				$ 7.79
21	808618		Screw		Appelez-nous	-
22	807501		Screw		Appelez-nous	-
23	W11233072		Screw   (Replaces: 803416)			Immediately	$ 13.25
24	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.43
25	808749		Screw		Appelez-nous	-
26	WP7101P126-60		Screw   (Replaces: 809055)			Immediately	$ 7.52
27	809163		Screw		Appelez-nous	-
28	809029		Screw		Appelez-nous	-
29	809025		Baffle Seal		Appelez-nous	-
30	809026		Speednut		Appelez-nous	-
31	805683		Door Spring		Appelez-nous	-
32	807043		Switch		Appelez-nous	-
33	808956		Thermostat		Appelez-nous	-
34	808522		Kickplate		Appelez-nous	-
35	808521		Access Pnl Trim		Appelez-nous	-
36	808029		Lh Trim		Appelez-nous	-
37	808028		Rh Trim		Appelez-nous	-
38	808346		Acc Pnl Trim		Appelez-nous	-
39	COMM PART		Door Trim   (Replaces: 807347)		Appelez-nous	-
40	808977		Door Trim		Appelez-nous	-
41	808976		Door Trim		Appelez-nous	-
