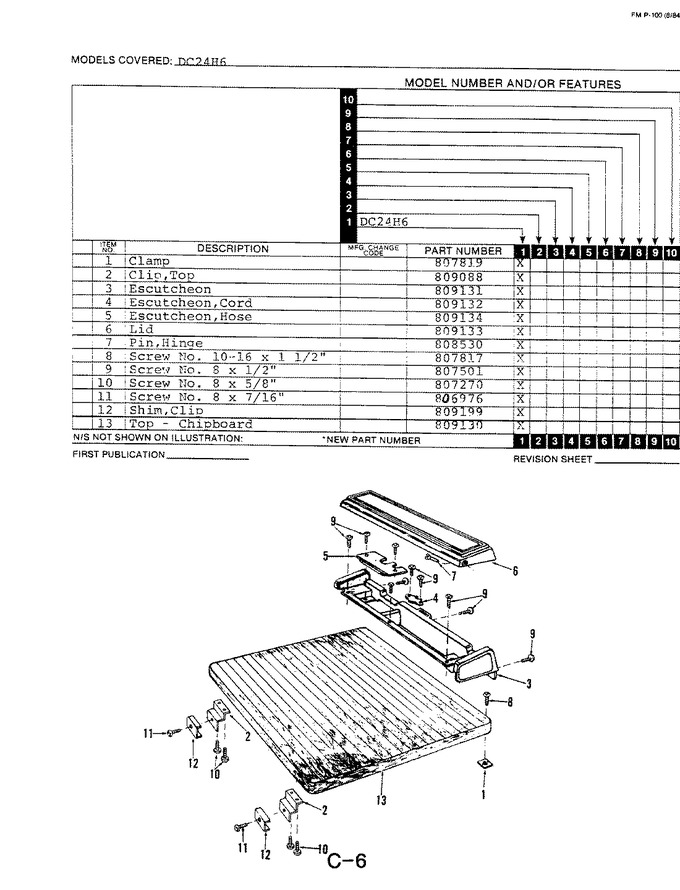

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Detergent Cup
03 - Door Parts
04 - Frame Parts
05 - Motor & Pump
06 - Rack
07 - Tub
08 - Wood Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807819 | Clamp |
|
- | |||||
| 2 | 809088 | Top Clip |
|
- | |||||
| 3 | 809131 | Escutcheon |
|
- | |||||
| 4 | 809132 | Escutcheon |
|
- | |||||
| 5 | 809134 | Escutcheon |
|
- | |||||
| 6 | 809133 | Lid |
|
- | |||||
| 7 | 808530 | Hinge Pin |
|
- | |||||
| 8 | 807817 | Screw |
|
- | |||||
| 9 | 807501 | Screw |
|
- | |||||
| 10 | 807270 | Screw |
|
- | |||||
| 11 | 806976 | Screw |
|
- | |||||
| 12 | 809199 | Clip Shim |
|
- | |||||
| 13 | 809130 | Top |
|
- |
