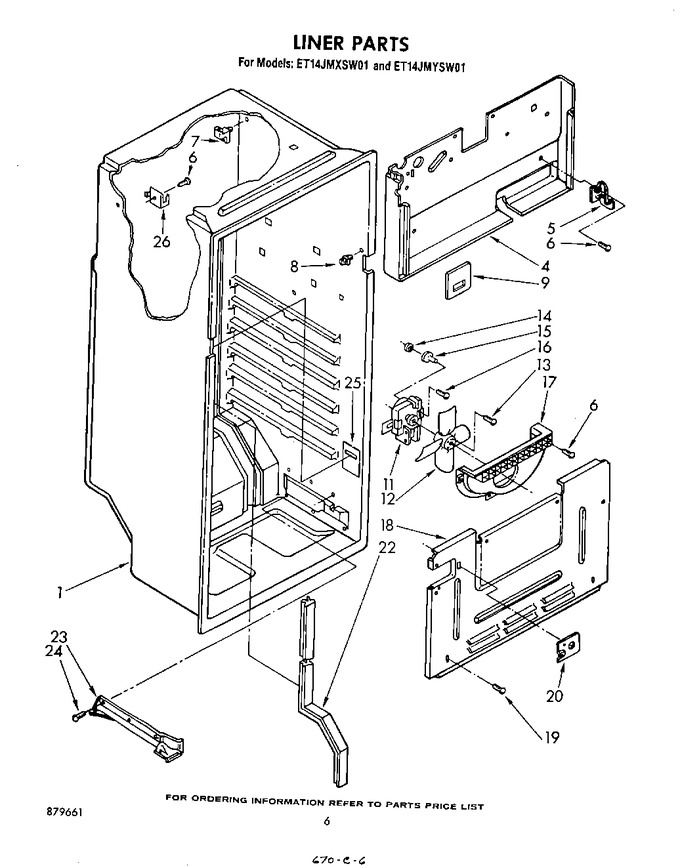

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 4 | 935699 | Heat Shield |
|
- | |||||
| 5 | 935700 | Evaporator, Support |
|
- | |||||
| 6 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 7 | 939203 | Support, Stud |
|
- | |||||
| 8 | 939065 | Stud Hook |
|
$ 7.25 | |||||
| 9 | 935696 | Cover, Air Duct |
|
- | |||||
| 11 | 482731 | Fan, Motor (Replaces: 946653) |
|
Immediately | $ 79.05 | ||||
| 12 | WP1100938 | Fan, Blade (Replaces: 1100938) |
|
$ 87.87 | |||||
| 13 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 244.80 | |||||
| 14 | 531933 | Grommet |
|
$ 5.70 | |||||
| 15 | 935701 | Spacer, Fan Motor |
|
- | |||||
| 16 | 489042 | Screw, 8 X 1-1/4 |
|
- | |||||
| 17 | 836179 | Scroll Fan |
|
- | |||||
| 18 | 946212 | Evaporator Cover |
|
- | |||||
| 19 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 7.79 | ||||
| 20 | WP2217784 | Hole Cover (Replaces: 944760) |
|
$ 44.97 | |||||
| 22 | 935704 | Cover Tube, Rear |
|
- | |||||
| 23 | 941776 | Cover Tube, Bottom |
|
- | |||||
| 24 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 487042) |
|
Immediately | $ 14.06 | ||||
| 25 | 946207 | Shield, Wiring |
|
- | |||||
| 26 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 26 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 26 | 285368 | Enamel, Platinum (1 Qt. Uncut) |
|
- | |||||
| 26 | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| 26 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 26 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| 26 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 26 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 26 | 939050 | Bracket, Wire Receptacle |
|
- | |||||
| 26 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| 26 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 26 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 231.56 | |||||
| 26 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 26 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | |||||
| 26 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 78.45 | |||||
| 26 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 26 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 26 | 799908 | Silicone (spray) |
|
- | |||||
| 26 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| 26 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| 26 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| 26 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 26 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 26 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 26 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 26 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 26 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 26 | 261891 | Enamel, Gold (1 Qt. Uncut) |
|
- | |||||
| 350941 | Xleveler, Enamel (13 Oz. Spray Can) |
|
- | ||||||
| LIT879661 | List, Parts |
|
- | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 89.66 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | ||||||
| LIT1115440 | Service & Wiring Sheet |
|
- | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 51.44 | ||||||
| LIT1116082 | Care & Use Guide |
|
- | ||||||
| LIT1116084 | Energy Label |
|
- | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285365 | Paint, Spray (13 Oz.) (toast) |
|
- | ||||||
| 261890 | Xenamel, Gold (13 Oz. Spray Can) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 |
