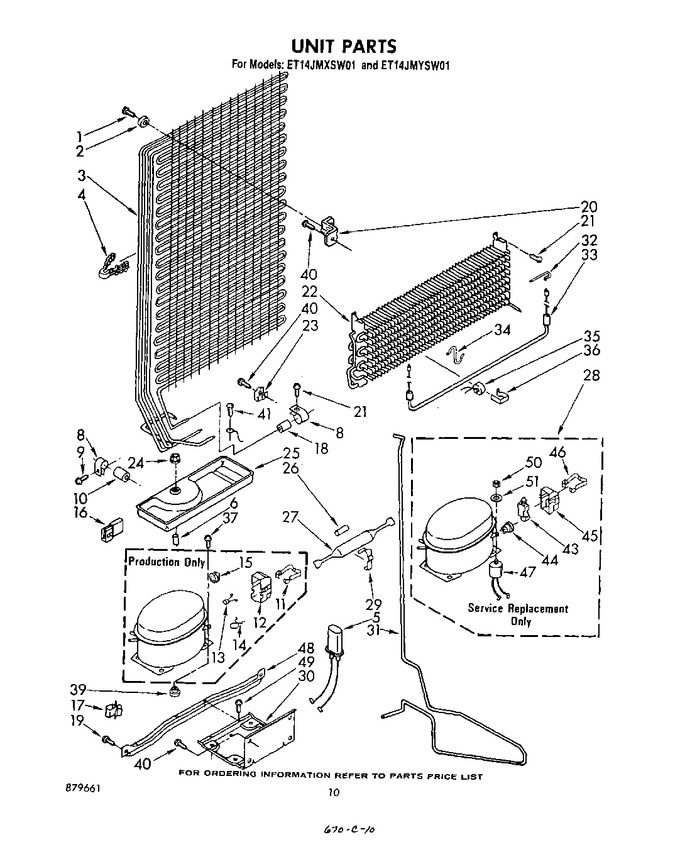

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 487888 | Screw, 8 X 7/8 (2) |
|
- | |||||
| 2 | 204349 | Bumper (2) |
|
- | |||||
| 3 | 1115428 | Condenser & Precooler Assembly |
|
- | |||||
| 4 | 942739 | Clip Tube (2) |
|
- | |||||
| 5 | 1108074 | Capacitor |
|
- | |||||
| 6 | 938275 | Spacer |
|
- | |||||
| 8 | 510716 | Tube Clamp |
|
- | |||||
| 9 | WPW10141625 | Screw, 8-32 X 1/2 (Replaces: 488197) |
|
$ 21.16 | |||||
| 10 | 1108064 | Dampener |
|
- | |||||
| 11 | 938384 | Relay Case Spring |
|
- | |||||
| 12 | 1108144 | Relay Case |
|
- | |||||
| 13 | 1114272 | Overload |
|
- | |||||
| 14 | 1114190 | Overload Spring |
|
- | |||||
| 15 | WP2262181 | Relay (Replaces: 1108143) |
|
$ 122.65 | |||||
| 16 | 934326 | Housing Plug (overload Only) |
|
- | |||||
| 17 | W10812038 | Clip, Wire (5) (Replaces: 939054) |
|
- | |||||
| 18 | 945593 | Dampener |
|
- | |||||
| 19 | 489340 | Screw, 5/16-18 X 5/8 (2) (Replaces: 488683) |
|
- | |||||
| 20 | 510721 | Condenser Bracket (2) |
|
- | |||||
| 21 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 22 | 938360 | Evaporator |
|
- | |||||
| 23 | 4386951 | Clip, Condenser Mounting (2) (Replaces: 942852) |
|
- | |||||
| 24 | 285002 | Nut (Replaces: 489153) |
|
$ 12.24 | |||||
| 25 | 935781 | Tray, Evaporator |
|
- | |||||
| 26 | 510446 | Restrictor Sleeve |
|
- | |||||
| 27 | W10843121 | Dryer (Replaces: 945424) |
|
Immediately | $ 52.57 | ||||
| 28 | 482981 | Compressor (also Order 482801 Installation Kit & Also 876765 Tube Kit) |
|
- | |||||
| 29 | 547637 | Drier Clamp |
|
- | |||||
| 30 | 942860 | Unit Mounting Plate |
|
- | |||||
| 31 | 1115429 | Exchanger, Heat |
|
- | |||||
| 32 | 850721 | Heater Clip |
|
- | |||||
| 33 | 935798 | Heater, Defrost |
|
- | |||||
| 34 | 851358 | Support, Heater |
|
- | |||||
| 35 | WP4387489 | Bi-metal, Defrost (Replaces: 937071) |
|
$ 103.80 | |||||
| 36 | 513584 | Clamp |
|
- | |||||
| 37 | 876811 | Screw, 1/4-28 X 1 (Replaces: 489116) |
|
$ 7.42 | |||||
| 39 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 40 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.86 | ||||
| 41 | 303776 | Screw, 8-32 X 5/16 (Replaces: 488879) |
|
- | |||||
| 43 | 1100806 | Relay |
|
- | |||||
| 44 | 1105077 | Overload |
|
- | |||||
| 45 | 1105015 | Cover, Terminal |
|
- | |||||
| 46 | 938384 | Strap |
|
- | |||||
| 47 | 482996 | Capacitor |
|
- | |||||
| 48 | 945448 | Unit Mounting Rail |
|
- | |||||
| 49 | WP965173 | Screw (Replaces: 487248) |
|
Immediately | $ 10.72 | ||||
| 50 | 489142 | Nut |
|
- | |||||
| 51 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 51 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 51 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 51 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 51 | 489143 | Washer |
|
- | |||||
| 51 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 51 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 51 | 978028 | Valve, Access (1/2) |
|
- |
