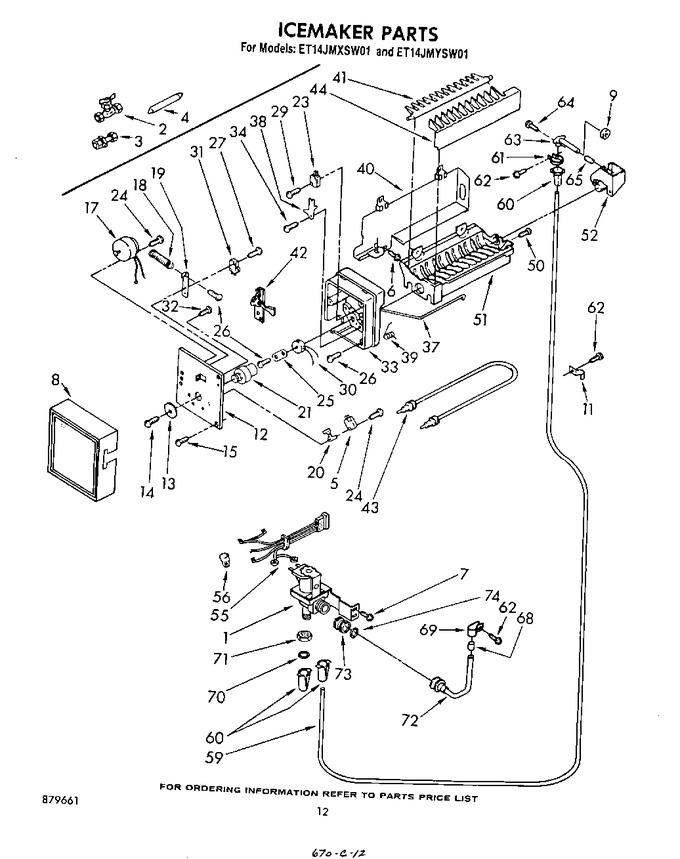

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4318047 | Valve, Solenoid (Replaces: 627820) |
|
Immediately | $ 74.09 | ||||
| 2 | 541157 | Valve, Shut-off |
|
- | |||||
| 3 | 512503 | Union, 1/4`` X 3/16`` |
|
- | |||||
| 4 | 978488 | Filter Kit |
|
- | |||||
| 5 | 627848 | Switch |
|
- | |||||
| 6 | 486214 | Screw 8-15 X 1/2 |
|
- | |||||
| 7 | WPW10141625 | Screw, (2) 8-32 X 1/2 (Replaces: 488649) |
|
$ 21.16 | |||||
| 8 | 1100705 | Cover |
|
- | |||||
| 9 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 11 | WP488366 | Tube Clamp (Replaces: 488366) |
|
$ 11.18 | |||||
| 12 | 627740 | Plate, Mounting |
|
- | |||||
| 13 | 625914 | Gear |
|
- | |||||
| 14 | 488957 | Screw |
|
- | |||||
| 15 | WP488787 | Screw, 8-18 X 1/2 (3) (Replaces: 488886) |
|
$ 10.58 | |||||
| 17 | 625846 | Motor |
|
- | |||||
| 18 | 627163 | Spring |
|
- | |||||
| 19 | 627024 | Plate, Valve |
|
- | |||||
| 20 | 625834 | Spacer, Holding Switch |
|
$ 7.99 | |||||
| 21 | 625913 | Cam |
|
- | |||||
| 23 | 625851 | Switch, S.p.d.t. |
|
- | |||||
| 24 | 488361 | Screw, 4-40 X 1 |
|
- | |||||
| 25 | 625829 | Clamp, Thermostat |
|
- | |||||
| 26 | 488372 | Screw, 8-32 X 1 |
|
- | |||||
| 27 | 00488362 | Screw, 4-40 X 3/4 (Replaces: 488362) |
|
$ 144.58 | |||||
| 29 | 488360 | Screw, 4-24 X 3/4 |
|
- | |||||
| 30 | 625844 | Thermostat |
|
- | |||||
| 31 | 625947 | Switch, S.p.s.t. |
|
- | |||||
| 32 | 488542 | Screw, Ground |
|
- | |||||
| 33 | 625827 | Support |
|
- | |||||
| 34 | 627199 | Screw, Shoulder |
|
- | |||||
| 37 | 627003 | Arm, Shut-off |
|
- | |||||
| 38 | 625830 | Lever, Arm |
|
- | |||||
| 39 | 625832 | Spring, Shut-off Arm |
|
- | |||||
| 40 | 627751 | Shield, Heat |
|
- | |||||
| 41 | 00627375 | Ejector (Replaces: 627375) |
|
Immediately | $ 203.33 | ||||
| 42 | 627248 | Lever & Plate Assembly |
|
- | |||||
| 43 | 625843 | Heater, Mold |
|
- | |||||
| 44 | 625840 | Stripper, Ice |
|
- | |||||
| 50 | 00489128 | Screw, 8-32 X 27/64 (Replaces: 489128) |
|
$ 859.97 | |||||
| 51 | 625856 | Mold & Heater Assembly (includes Illus. 43) |
|
- | |||||
| 52 | 544304 | Beraing & Inlet |
|
- | |||||
| 55 | 627750 | Harness, Wiring |
|
- | |||||
| 56 | 227991 | Connector Wire |
|
- | |||||
| 59 | W10823511 | Tube, Water (Replaces: 653415) |
|
Immediately | $ 32.41 | ||||
| 60 | 4387491 | Insert, Tube (3) (Replaces: 841707) |
|
$ 7.84 | |||||
| 61 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 62 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.86 | ||||
| 63 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.99 | ||||
| 64 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 7.67 | |||||
| 65 | 939027 | Tube, Water Inlet |
|
- | |||||
| 68 | WP2158826 | Dampener (Replaces: 836074) |
|
$ 1.73 | |||||
| 69 | 510716 | Clamp Tube |
|
- | |||||
| 70 | 488794 | Ring, ``o`` |
|
- | |||||
| 71 | WP627018 | Nut, 1/4 Dia. (Replaces: 627018) |
|
$ 10.97 | |||||
| 72 | 627883 | Tube, Inlet |
|
- | |||||
| 73 | 537588 | Nut, Valve |
|
- | |||||
| 74 | WP16123 | Washer (Replaces: 488292) |
|
$ 7.70 |
