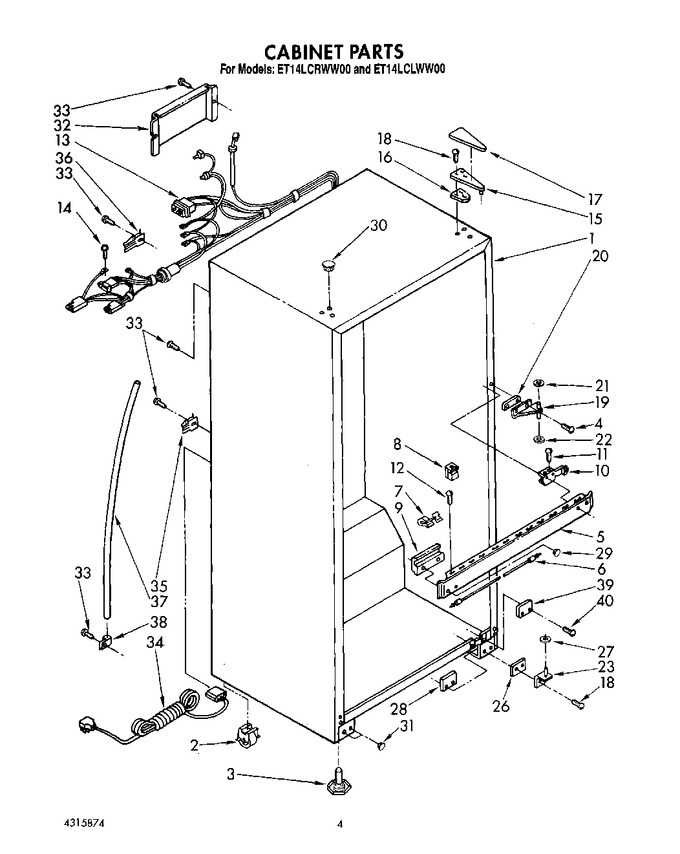

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	937216		Roller, Front & Rear (4)		Appelez-nous	-
3	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 18.45
4	489179		Screw		Appelez-nous	-
4	489297		Screw (repair)		Appelez-nous	-
5	935685		Center Rail (white)		Appelez-nous	-
5	935689		Center Rail (almond)		Appelez-nous	-
6	938278		Heater, Mullion		Appelez-nous	-
7	534365		Breaker, Trim Cup				$ 14.83
8	1116484		Spacer		Appelez-nous	-
9	939034		Center, Rail Shim		Appelez-nous	-
10	935692		Bracket, Center Rail		Appelez-nous	-
11	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.79
12	WP488729		Screw, 8 X 1/2   (Replaces: 487900)			Immediately	$ 7.79
13	1127559		Cabinet Wiring Assembly		Appelez-nous	-
14	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
15	842039		Hinge, Top		Appelez-nous	-
16	836192		Shim, Hinge Top		Appelez-nous	-
17	842010		Hinge Cover (white)		Appelez-nous	-
17	989194		Hinge Cover (almond)		Appelez-nous	-
18	489297		Screw (repair)		Appelez-nous	-
18	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.86
19	836153		Hinge, Center		Appelez-nous	-
20	836155		Shim, Hinge Center		Appelez-nous	-
21	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
22	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.19
23	943670		Hinge, Bottom L.h.		Appelez-nous	-
23	943668		Hinge Butt (bottom R.h.)		Appelez-nous	-
26	935737		Shim, Bottom		Appelez-nous	-
27	WP487576		Washer, 1/16   (Replaces: 487576)			Immediately	$ 9.88
28	935743		Tap Plate, Bottom		Appelez-nous	-
29	1119709		Hole Plug (almond)		Appelez-nous	-
29	1119707		Hole Plug (white)		Appelez-nous	-
30	1129063		Hole Plug (3) (almond)		Appelez-nous	-
30	1129062		Hole Plug (3) (white)		Appelez-nous	-
31	941416		Hole Plug (white)		Appelez-nous	-
31	941417		Hole Plug (almond)		Appelez-nous	-
32	1124738		Cover Wiring		Appelez-nous	-
33	WP489478		Screw   (Replaces: 489242)				$ 7.75
34	937360		Cord, Service		Appelez-nous	-
35	549193		Clamp-service Cord				$ 13.39
36	937357		Clamp		Appelez-nous	-
37	8316810		Tube, Drain   (Replaces: 509640)				$ 119.73
38	488946		Tube, Clamp				$ 20.45
39	935707		Rail Cover Tube (white)		Appelez-nous	-
39	935711		Rail Cover Tube (almond)		Appelez-nous	-
40	488895		Screw		Appelez-nous	-
