SELECT A DIAGRAM

01 - Door


02 - Cabinet


03 - Liner, Lit/optional


04 - Compartment Separator & Control


05 - Unit


06 - Shelf

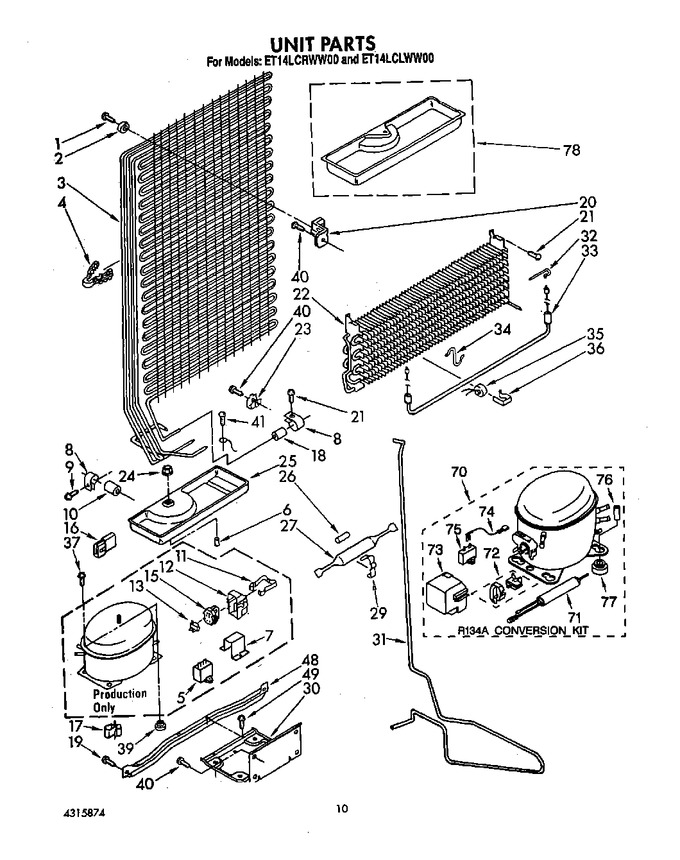

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1115428		Condenser & Precooler Assembly		Appelez-nous	-
4	942739		Clip Tube (2)		Appelez-nous	-
5	WPW10662129		Running Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
6	938275		Spacer		Appelez-nous	-
7	1118525		Cover, Capacitor		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
10	1108064		Dampener		Appelez-nous	-
11	938384		Relay Case Spring		Appelez-nous	-
12	1108115		Relay Case		Appelez-nous	-
13	1105172		Overload		Appelez-nous	-
15	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
16	934326		Housing Plug		Appelez-nous	-
17	W10812038		Clip, Wire (5)   (Replaces: 939054)		Appelez-nous	-
18	945593		Dampener		Appelez-nous	-
19	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	938360		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	935781		Tray, Evaporator		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
29	547637		Drier Clamp		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	1115429		Exchanger, Heat		Appelez-nous	-
32	850721		Heater Clip		Appelez-nous	-
33	935798		Heater, Defrost		Appelez-nous	-
34	851358		Support, Heater		Appelez-nous	-
35	WP4387489		Bi-metal, Defrost   (Replaces: 937071)				$ 108.99
36	513584		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
41	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
48	945448		Unit Mounting Rail		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
70	876765		Tube Kit			Immediately	$ 90.65
70	482801		Install Kit & Item 78				$ 119.50
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
78	876764		Valve, Access(3/16``)			Immediately	$ 95.92
78	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
78	978029		Valve Access (5/8``)				$ 93.85
78	978030		Valve, Access (3/4``)				$ 137.25
78	1101002		Tray, Evaporator (required When Replacing Compressor)		Appelez-nous	-
78	978026		Valve, Access (5/16``)			Immediately	$ 134.49
78	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
78	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
