SELECT A DIAGRAM

01 - Door


02 - Cabinet


03 - Liner, Lit/optional

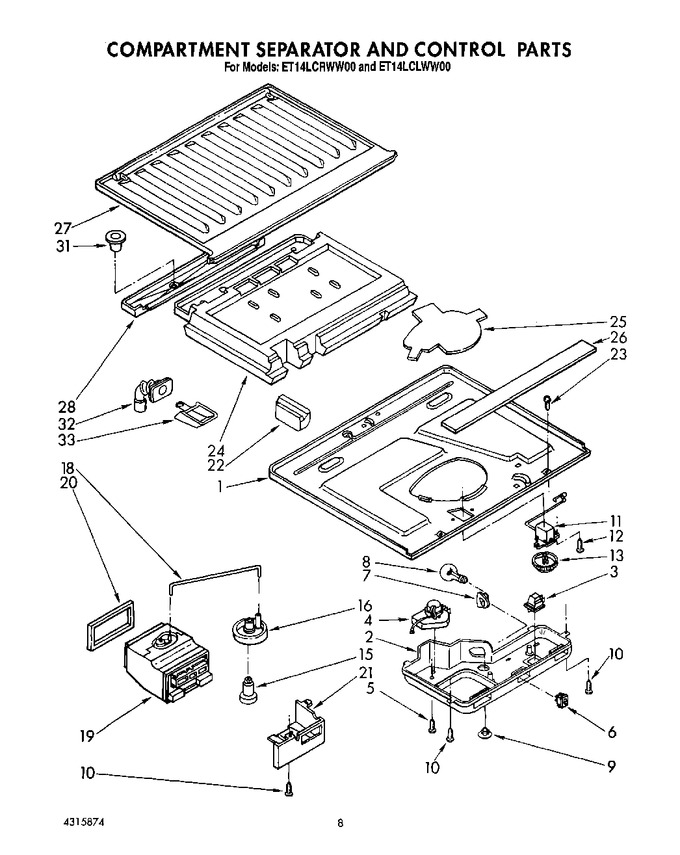

04 - Compartment Separator & Control


05 - Unit


06 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116091		Bottom, Compartment Separator		Appelez-nous	-
2	935726		Box, Control		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
4	CC901		Defrost Timer, (10 Hr.)   (Replaces: 1127570)			Immediately	$ 58.27
5	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 7.95
6	938049		Switch, Toggle		Appelez-nous	-
7	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
8	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
11	WP819470		Thermostat & Barrier Assembly   (Replaces: 940038)				$ 164.96
12	488624		Screw, 8 X 3/8		Appelez-nous	-
13	937144		Knob, Thermostat		Appelez-nous	-
15	1111792		Retainer, Knob		Appelez-nous	-
16	1111737		Knob, Air Control		Appelez-nous	-
18	1111438		Rod, Connecting		Appelez-nous	-
19	935721		Air Diffuser		Appelez-nous	-
20	1114325		Gasket, Air Diffuser		Appelez-nous	-
21	937226		Cover, Air Diffuser		Appelez-nous	-
22	939056		Rear Corner, Block		Appelez-nous	-
23	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.92
24	939272		Insulation, Compartment Separator		Appelez-nous	-
25	937227		Heat Shield		Appelez-nous	-
26	937086		Center Rail, Seal Strip		Appelez-nous	-
27	935717		Top, Compartment Separator		Appelez-nous	-
28	935718		Drain Pan		Appelez-nous	-
31	937359		Separator, Drain Insert		Appelez-nous	-
32	937062		Fitting, Drain		Appelez-nous	-
33	937065		Cup, Drain		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
