02 - Cabinet


03 - Liner

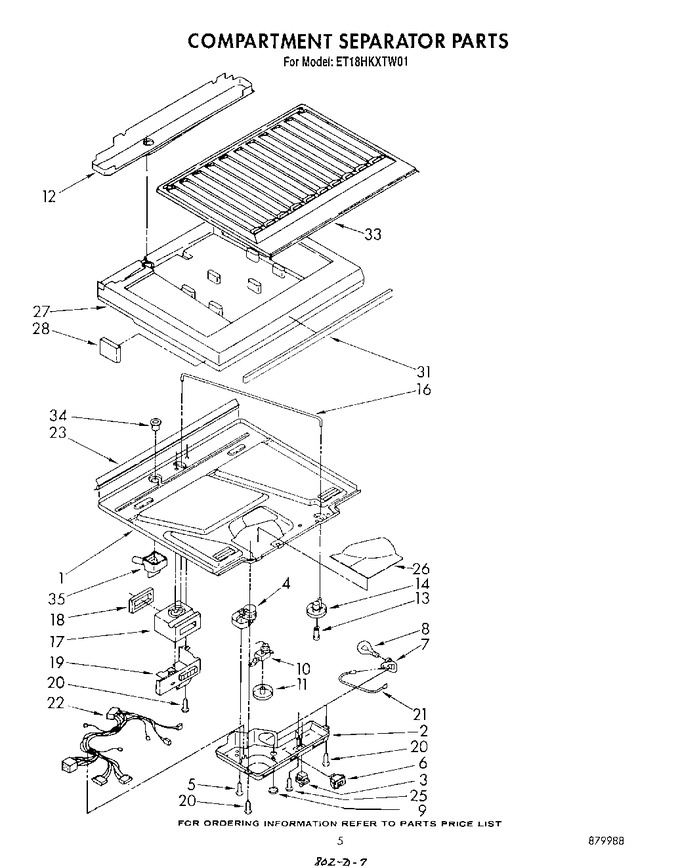

04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111796		Bottom, Compartment Separator		Appelez-nous	-
2	1119597		Box, Control		Appelez-nous	-
3	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
4	1105267		Timer, Defrost (10 Hour)		Appelez-nous	-
5	WP487353		Screw, 6-20 X 1/2   (Replaces: 488693)				$ 7.95
6	1105166		Toggle, Switch		Appelez-nous	-
7	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 115.67
8	W11679940		Bulb, Light   (Replaces: 946059)			Immediately	$ 11.30
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Assembly   (Replaces: 1114238)				$ 219.95
11	1111759		Knob, Thermostat		Appelez-nous	-
12	1108358		Drain Pan		Appelez-nous	-
13	1111792		Retainer, Knob Control		Appelez-nous	-
14	1111760		Knob, Air Control		Appelez-nous	-
16	1111272		Rod, Connecting		Appelez-nous	-
17	1118774		Air Diffuser Assembly		Appelez-nous	-
18	1114325		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
20	WP489478		Screw   (Replaces: 489242)				$ 8.18
21	937078		Wiring Assembly		Appelez-nous	-
22	1118848		Wiring, Assembly Control Box		Appelez-nous	-
23	1123915		Gasket, Bottom Separator		Appelez-nous	-
25	488678		Screw, 8 X 1-3/8		Appelez-nous	-
26	1108196		Insulation, Filler		Appelez-nous	-
27	1110354		Insulation, Compartment Separator		Appelez-nous	-
28	946367		Pad (2)		Appelez-nous	-
31	1111503		Insulation, Center Rail		Appelez-nous	-
33	1119325		Separator, Compartment (top)		Appelez-nous	-
34	942849		Drain Insert, Separator		Appelez-nous	-
35	939191		Cup, Drain				$ 5.84

    View Diagram in Separate Window       Print Part List
