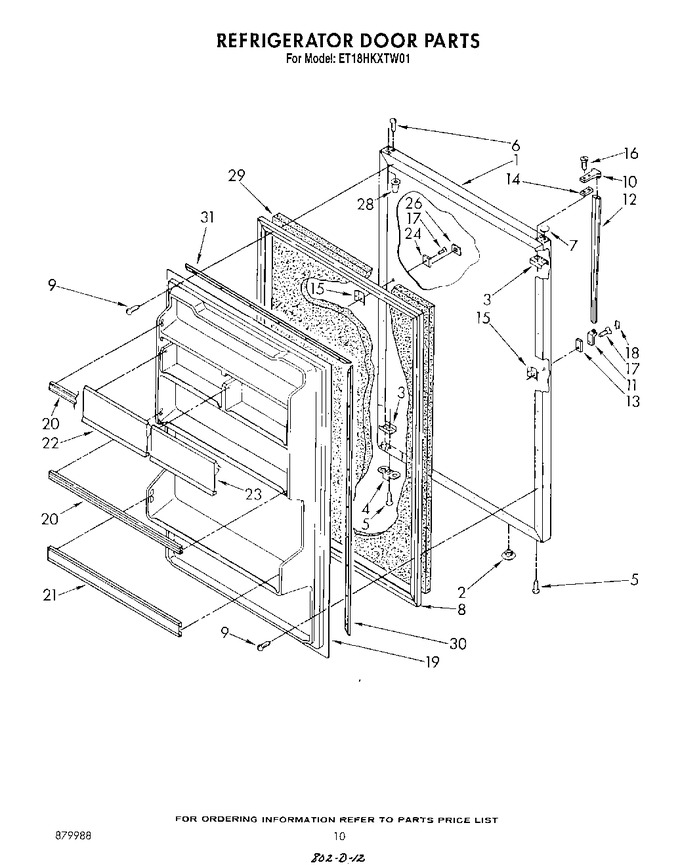

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1104634		Panel, Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1104632		Panel, Refrigerator Door (white)		Appelez-nous	-
1	1104638		Panel, Refrigerator Door (platinum) (also Order Item 29)		Appelez-nous	-
1	1104637		Panel, Refrigerator Door (toast)		Appelez-nous	-
1	1104636		Panel, Refrigerator Door (almond)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	489221		Screw (repair)		Appelez-nous	-
5	WP488921		Screw   (Replaces: 489220)			Immediately	$ 8.24
6	489221		Screw (repair)		Appelez-nous	-
6	WP488921		Screw (2)   (Replaces: 489224)			Immediately	$ 8.24
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	1100189		Hole Plug (platinum)		Appelez-nous	-
8	1122827		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	943182		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 51.98
12	1106189		Handle, Center		Appelez-nous	-
12	1109166		Handle Center (for Platinum Model Only)		Appelez-nous	-
13	992872		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	489250		Screw (repair)		Appelez-nous	-
16	WP488920		Screw (2)   (Replaces: 489219)				$ 7.98
17	WP488729		Screw   (Replaces: 489222)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
19	1120634		Interior Door Panel		Appelez-nous	-
20	946986		Trim, Door (2)		Appelez-nous	-
21	946989		Trim, Door		Appelez-nous	-
22	1111872		Compartment Door, Utility		Appelez-nous	-
23	1111871		Compartment, Butter Door		Appelez-nous	-
24	1107329		Clip, Medallion		Appelez-nous	-
26	1111705		Medallion		Appelez-nous	-
28	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
29	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
30	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
31	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
31	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
31	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
31	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
31	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
31	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
31	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
31	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
31	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
31	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
31	833938		Kit, Terminal Connector				$ 8.47
31	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
31	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
31	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
31	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
31	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
31	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
31	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
31	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
31	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
31	1120616		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
31	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
31	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
31	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
31	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
31	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
31	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
31	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
31	350942		Primer White (13 Oz. Spray Can)				$ 94.14
31	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
31	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
31	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
31	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
31	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT879988		Parts List		Appelez-nous	-
	LIT1118877		Service & Wiring Sheet		Appelez-nous	-
	LIT1120605		Care & Use Guide		Appelez-nous	-
	LIT1120592		Energy Label		Appelez-nous	-
