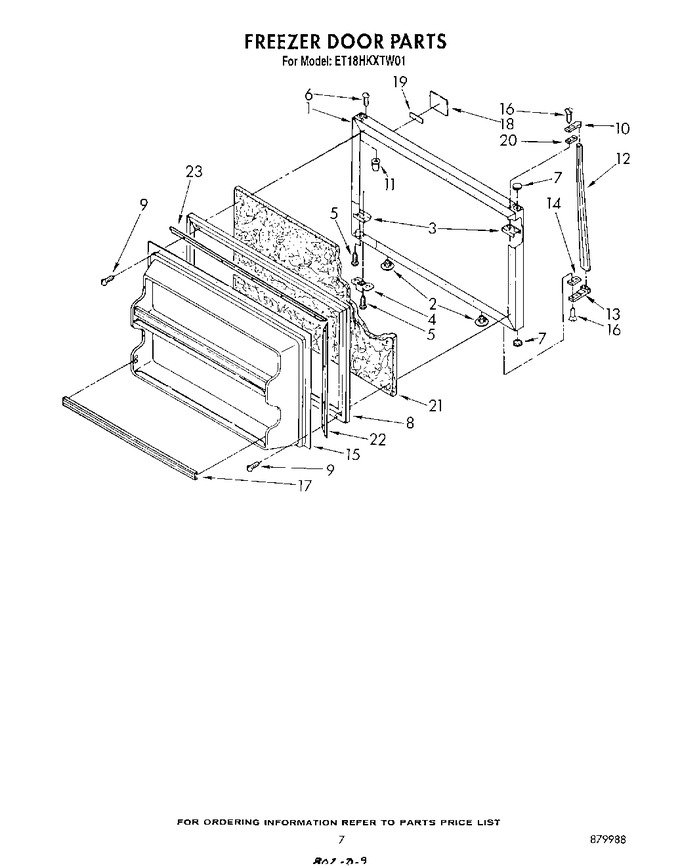

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1104640		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	1104642		Panel, Freezer Door (also Order Item 21) (golden Harvest)		Appelez-nous	-
1	1104644		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1104645		Panel, Freezer Door (also Order Item 21) (toast)		Appelez-nous	-
1	1104646		Panel, Freezer Door (also Order Item 21) (platinum)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
2	989879		Hole Plug (2) (golden Harvest)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
2	1100196		Hole Plug (2) (toast)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	489221		Screw (repair)		Appelez-nous	-
5	WP488921		Screw   (Replaces: 489220)			Immediately	$ 8.24
6	WP488921		Screw (2)   (Replaces: 489224)			Immediately	$ 8.24
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	1100189		Hole Plug (platinum)		Appelez-nous	-
8	1122830		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	WP2191882		Handle End,   (Replaces: 943184)				$ 62.77
11	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
12	1109171		Handle, Center (for Platinum Model Only)		Appelez-nous	-
12	1106194		Handle, Center		Appelez-nous	-
13	943182		Handle End		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	1120635		Interior Door Panel		Appelez-nous	-
16	489250		Screw (repair)		Appelez-nous	-
16	WP488920		Screw (4)   (Replaces: 489219)				$ 7.98
17	946987		Trim, Door Shelf (2)		Appelez-nous	-
18	945115		Nameplate		Appelez-nous	-
19	991259		Tape Strip		Appelez-nous	-
20	943187		Shim, Handle				$ 25.14
21	876029		Kit, Foam Slab		Appelez-nous	-
22	1120613		Gasket Retainer, Side (2)		Appelez-nous	-
23	1120616		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
