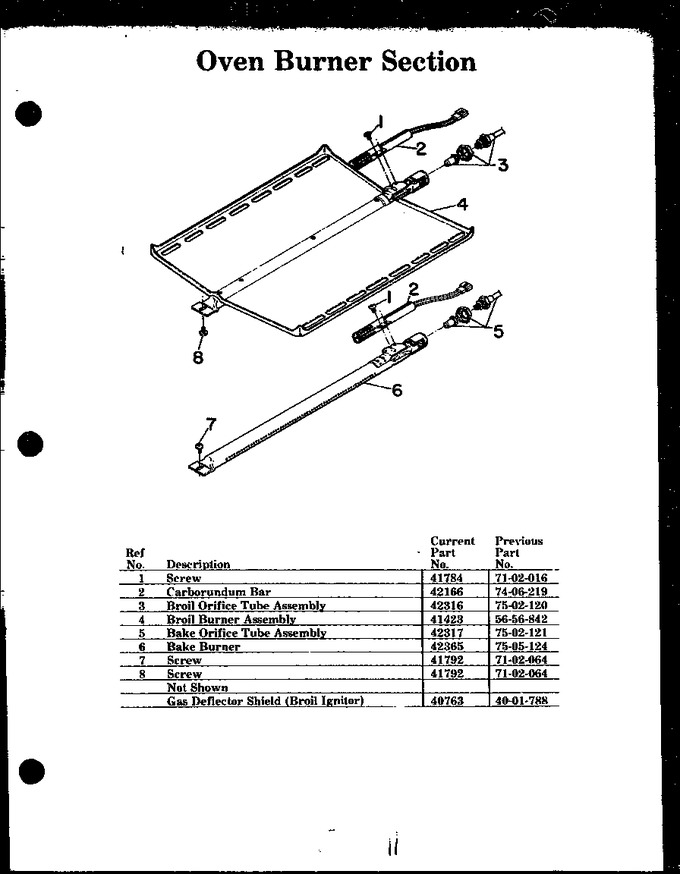

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0041784		Metal Screw 8x1/4 Ph Pan Hd		Appelez-nous	-
2	Y0042166		Carborundum Igniter		Appelez-nous	-
3	0042316		Broil Orifice & Tube Ki721		Appelez-nous	-
4	41423		Broil Burner Assembly		Appelez-nous	-
5	0042317		Bake Orifice & Tube Ki-721		Appelez-nous	-
6	0042365		Oven Burner		Appelez-nous	-
7	WP8281227		Tapng Scrw 8 32x3/8 Hex Hd   (Replaces: Y0041792)				$ 9.86
8	WP8281227		Tapng Scrw 8 32x3/8 Hex Hd   (Replaces: Y0041792)				$ 9.86
NI	0040763		Gas Deflector Th Hi Broil		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
