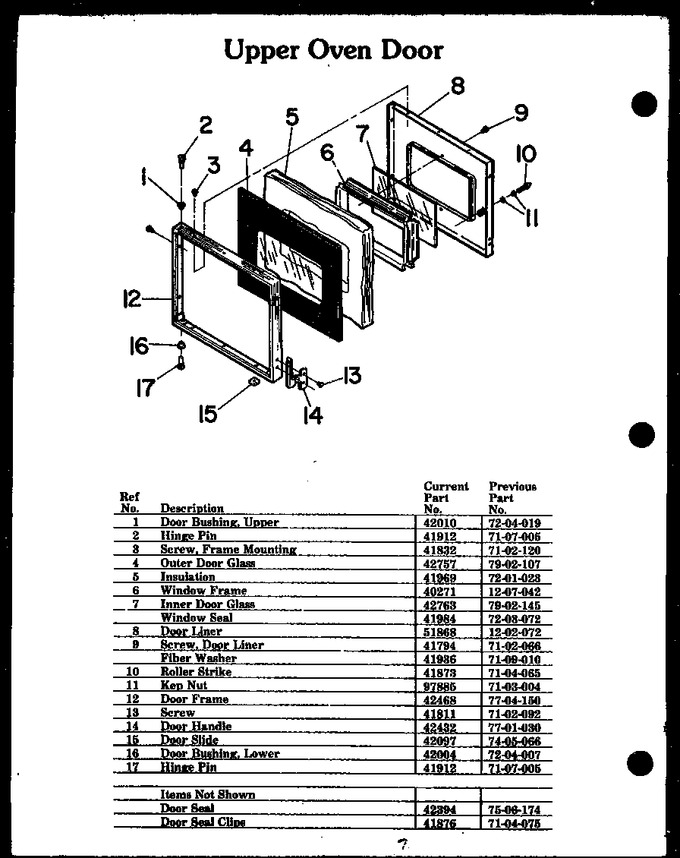

05 - Upper Oven Cabinet Section


06 - Upper Oven Door


07 - Vent Pak


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0042010		Door Bushing		Appelez-nous	-
2	0041912		Hinge Pin		Appelez-nous	-
3	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
4	0042757		1l Glass 700min		Appelez-nous	-
5	Y0041969		Sub 41966, Insul. 2x20x65, Fib		Appelez-nous	-
6	0040271		Window Frame Ei&gi Japan		Appelez-nous	-
7	Y0041984		Window Seal 46``		Appelez-nous	-
7	0042763		Glass, Door Inside Wo Th Mh		Appelez-nous	-
8	Y0051868		Sub 51869cg, Backer Oven Door		Appelez-nous	-
9	0041936		Sub 41943, Washer,nylon		Appelez-nous	-
9	WPY706189		Metal Screw 8ax3/8 Ph Tr Bk   (Replaces: Y0041794)			Immediately	$ 6.80
10	0041873		Roller Strike		Appelez-nous	-
11	M0282009		Nut   (Replaces: Y0097885)				$ 12.66
12	0042468		Ov Dr Frame 2500 Split		Appelez-nous	-
13	8169479		Screw, No.8-18 X 1/2 P Flt Hd   (Replaces: Y0041811)				$ 6.57
14	0042432		Dr Handle E/l Upper Oven		Appelez-nous	-
15	Y0042097		Door Slide 5m-10m-25m		Appelez-nous	-
16	0042004		Door Bushing		Appelez-nous	-
17	0041912		Hinge Pin		Appelez-nous	-
NI	0042394		Door Seal		Appelez-nous	-
NI	0041876		Door Seal Clips		Appelez-nous	-
