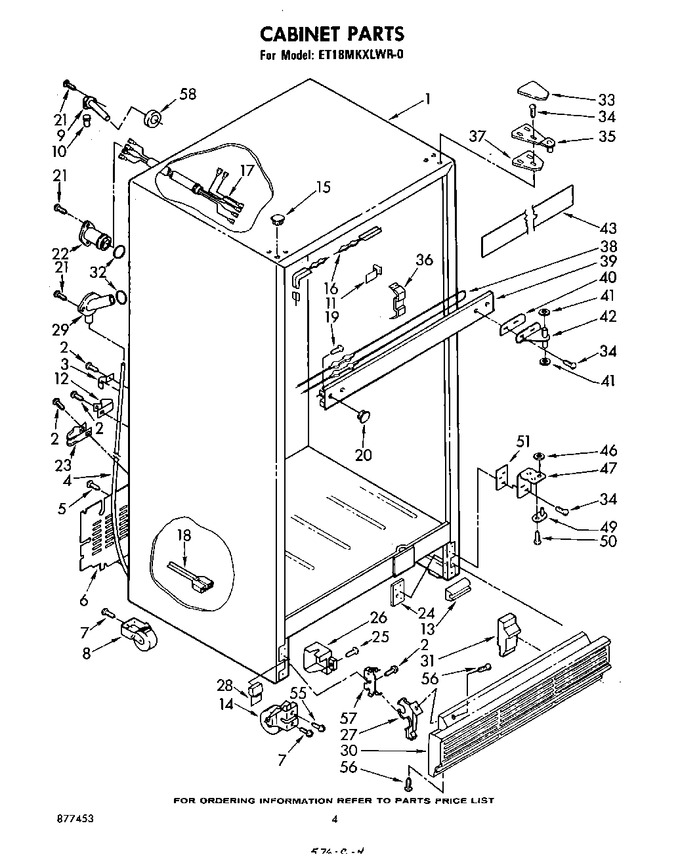

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	836077		Clamp (2)		Appelez-nous	-
4	8316810		Tube, Drain   (Replaces: 940091)				$ 125.72
5	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
6	850639		Cover		Appelez-nous	-
7	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
8	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
9	WP2196157		Fitting, Water Tube   (Replaces: 841907)			Immediately	$ 12.59
10	WP487996		Cap   (Replaces: 487996)				$ 8.67
11	935663		Clip, Heater (4)		Appelez-nous	-
12	940108		Clamp, Cord (2)		Appelez-nous	-
13	546131		Bumper (2)		Appelez-nous	-
14	981127		Roller, Front (2)		Appelez-nous	-
15	989876		Plug, Hole (3) (golden Harvest)		Appelez-nous	-
15	989875		Plug, Hole (3) (coffee)		Appelez-nous	-
15	989877		Plug, Hole (3) (new Avocado)		Appelez-nous	-
15	989195		Plug, Hole (3) (almond)		Appelez-nous	-
15	1100177		Hole Plug (3) (platinum)		Appelez-nous	-
15	1100176		Hole Plug (3) (toast)		Appelez-nous	-
15	842031		Plug, Hole (3) (white)		Appelez-nous	-
16	945522		Heater, Stile		Appelez-nous	-
17	937267		Cabinet Wiring Assembly		Appelez-nous	-
18	548734		Wire Assembly (water Valve)		Appelez-nous	-
19	487470		Screw (repair)		Appelez-nous	-
19	488624		Screw, 8 X 3/8		Appelez-nous	-
20	1100174		Plug, Hole (2) (toast)		Appelez-nous	-
20	835974		Plug, Hole (2) (white)		Appelez-nous	-
20	989881		Plug, Hole (2) (coffee)		Appelez-nous	-
20	989883		Plug, Hole (2) (new Avocado)		Appelez-nous	-
20	989882		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
20	989193		Plug, Hole (2) (almond)		Appelez-nous	-
20	1100175		Hole Plug (2) (platinum)		Appelez-nous	-
21	WP98165		Screw, 8 X 5/8 (3)   (Replaces: 488401)				$ 8.57
22	937249		Tunnel, Wiring		Appelez-nous	-
23	939009		Clamp		Appelez-nous	-
24	836162		Plate, Tap		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
26	549947		Box, Junction		Appelez-nous	-
27	WP944224		Support, Grille (2)   (Replaces: 944224)				$ 7.94
28	989931		Fill, Grille (almond)		Appelez-nous	-
28	838535		Fill, Grille (white)		Appelez-nous	-
28	989928		Fill, Grille (coffee)		Appelez-nous	-
28	989929		Fill, Grille (golden Harvest)		Appelez-nous	-
28	989930		Fill, Grille (new Avocado)		Appelez-nous	-
28	1100182		Filler, Grille (toast)		Appelez-nous	-
28	1100183		Filler, Grille (platinum)		Appelez-nous	-
29	939271		Drain Fitting		Appelez-nous	-
30	1100180		Grille (toast)		Appelez-nous	-
30	944230		Grille (almond)		Appelez-nous	-
30	944227		Grille (coffee)		Appelez-nous	-
30	1100181		Grille (platinum)		Appelez-nous	-
30	944226		Grille (white)		Appelez-nous	-
30	944229		Grille (new Avocado)		Appelez-nous	-
30	944228		Grille (golden Harvest)		Appelez-nous	-
31	836372		Insert, Air Baffle		Appelez-nous	-
32	940121		Gasket, Seal		Appelez-nous	-
33	1100172		Hinge Cover (toast)		Appelez-nous	-
33	842010		Cover, Hinge (white)		Appelez-nous	-
33	989895		Cover, Hinge (coffee)		Appelez-nous	-
33	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
33	989896		Cover, Hinge (golden Harvest)		Appelez-nous	-
33	989194		Cover, Hinge (almond)		Appelez-nous	-
33	1100173		Hinge Cover (platinum)		Appelez-nous	-
34	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
34	488949		Screw (repair)		Appelez-nous	-
35	842039		Hinge & Shim (top)		Appelez-nous	-
36	942478		Clip, Heater		Appelez-nous	-
37	836192		Shim, Top Hinge (.030)		Appelez-nous	-
38	941681		Heater, Mullion		Appelez-nous	-
39	989905		Rail, Center (coffee)		Appelez-nous	-
39	1100171		Rail, Center (platinum)		Appelez-nous	-
39	1100170		Rail, Center (toast)		Appelez-nous	-
39	989191		Rail, Center (almond)		Appelez-nous	-
39	989906		Rail, Center (golden Harvest)		Appelez-nous	-
39	989907		Rail, Center (new Avocado)		Appelez-nous	-
39	836066		Rail, Center (white)		Appelez-nous	-
40	836155		Shim (.030)		Appelez-nous	-
41	WP488296		Washer, 11/64 (2)   (Replaces: 488296)				$ 7.55
42	836153		Hinge & Shim (center)		Appelez-nous	-
43	987524		Center Rail, Seal		Appelez-nous	-
46	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.91
47	836159		Butt, Hinge (bottom)		Appelez-nous	-
49	654366		Pin, Hinge (bottom)				$ 27.15
50	488714		Screw 10-32 X 5/16				$ 5.48
51	836196		Shim (bottom) (.030)		Appelez-nous	-
55	488681		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
56	489085		Screw, 8-22 X 5/16		Appelez-nous	-
57	989068		Clip, Grille		Appelez-nous	-
58	WP1106508		Seal, Gasket   (Replaces: 1103059)			Immediately	$ 10.43
