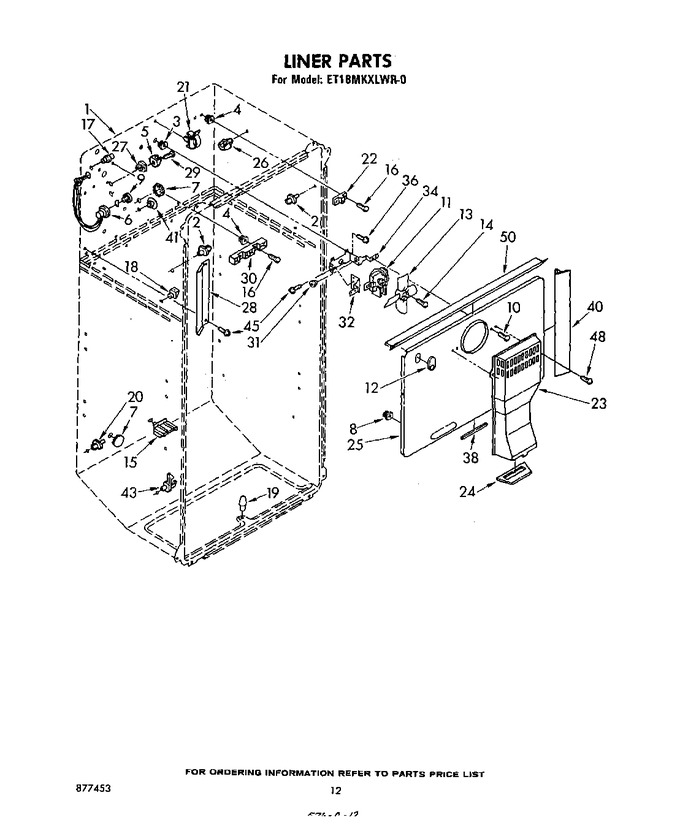

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	521878		Stud, Shelf (2)		Appelez-nous	-
3	941700		Grommet (2)		Appelez-nous	-
4	937252		Grommet (4)		Appelez-nous	-
5	836492		Stud, Saddle		Appelez-nous	-
6	937264		Liner Wiring (ice Maker)		Appelez-nous	-
7	519890		Plug, Hole (4)		Appelez-nous	-
8	848445		Grommet (4)		Appelez-nous	-
9	850738		Cap, Receptacle		Appelez-nous	-
10	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488772)			Immediately	$ 7.86
11	SM999		Motor, Fan   (Replaces: 941687)			Immediately	$ 30.26
12	659776		Hole, Plug Tube		Appelez-nous	-
13	992920		Blade, Fan				$ 39.91
14	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
15	836412		Stud, Crisper Support		Appelez-nous	-
16	WP488163		Screw, 8 X 13/16   (Replaces: 488725)				$ 7.54
17	526383		Stud		Appelez-nous	-
18	836374		Stud, Retainer (4)		Appelez-nous	-
19	836409		Grommet, Post		Appelez-nous	-
20	536475		Stud, Shelf (2)				$ 7.28
21	851039		Fastener, Wire		Appelez-nous	-
22	937254		Terminal Block (single)		Appelez-nous	-
23	937282		Air Duct		Appelez-nous	-
24	939099		Sealing Gasket		Appelez-nous	-
25	937287		Cover, Evaporator		Appelez-nous	-
26	523263		Stud, Saddle (r.s.)		Appelez-nous	-
27	538449		Grommet		Appelez-nous	-
28	937269		Wiring Shield		Appelez-nous	-
29	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 7.79
30	937253		Terminal Block (multiple)		Appelez-nous	-
31	548268		Grommet (3)		Appelez-nous	-
32	937277		Bracket, Double		Appelez-nous	-
34	937278		Bracket, Single		Appelez-nous	-
36	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
38	939199		Gasket, Sealing		Appelez-nous	-
40	981750		Gasket (2)		Appelez-nous	-
41	659598		Plug, Hole (2)		Appelez-nous	-
43	836423		Stud, Shelf (2)		Appelez-nous	-
45	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
48	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
50	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
50	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
50	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
50	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
50	479502		Tape, Vinyl				$ 66.77
50	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
50	939103		Gasket, Top		Appelez-nous	-
50	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
50	978241		Insulation, Fiberglass (63-1/2`` X 32-1/2`` X 2-5/8``)		Appelez-nous	-
50	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
50	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
50	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
50	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
50	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
50	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
50	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
50	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
50	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
50	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
50	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
50	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
50	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
50	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
50	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
50	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
50	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
50	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
50	833938		Kit, Terminal Connector				$ 8.07
50	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
50	515393		Transformer (115-230 Volt)		Appelez-nous	-
50	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
50	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
50	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	677971		Ice Maker		Appelez-nous	-
	LIT946639		Service & Wiring Sheet		Appelez-nous	-
	LIT943038		Care & Use Guide		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	677967		Dishwasher		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	677821		Compactor				$ 35.01
	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
	677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT877453		List, Repair Parts		Appelez-nous	-
	LIT946863		Energy Guide		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
