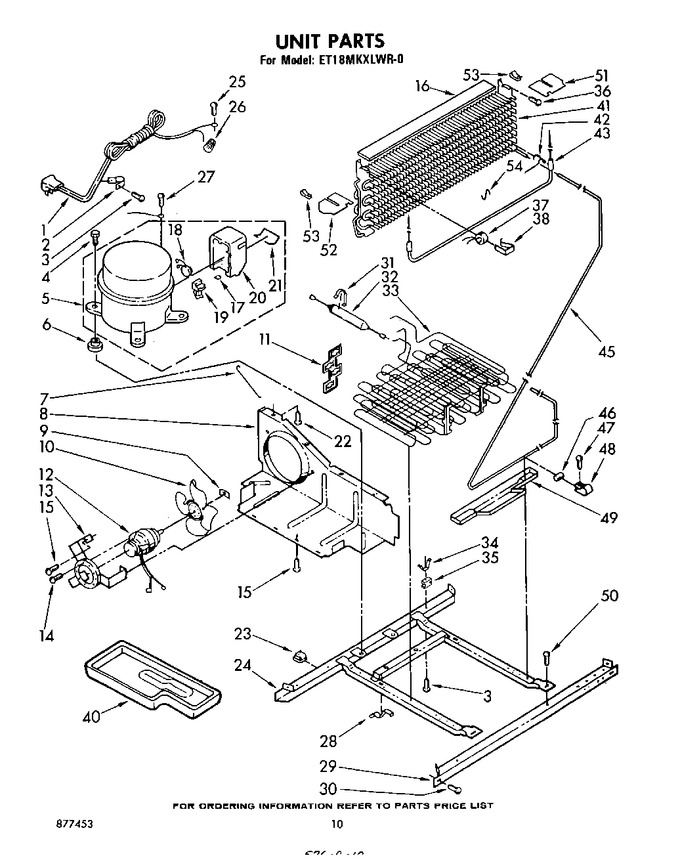

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	850626		Cord, Service		Appelez-nous	-
2	549193		Clamp-cord				$ 14.06
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
4	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
5	876638		Compressor Kit (includes Items 17, 18, 19, 20, & 21)		Appelez-nous	-
6	547283		Grommet (4)		Appelez-nous	-
7	850156		Guard, Fan		Appelez-nous	-
8	850764		Baffle, Air		Appelez-nous	-
9	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 8.43
10	989524		Fan		Appelez-nous	-
11	987210		Spacer, Condenser (3)		Appelez-nous	-
12	833697		Motor   (Replaces: 945566)			Immediately	$ 88.15
13	548695		Bracket, Motor		Appelez-nous	-
14	681390		Screw   (Replaces: 489019)				$ 13.71
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	937289		Baffle, Evaporator		Appelez-nous	-
17	547272		Bumper		Appelez-nous	-
18	549041		Overload		Appelez-nous	-
19	989661		Relay		Appelez-nous	-
20	549945		Case, Relay		Appelez-nous	-
21	531318		Spring		Appelez-nous	-
22	489050		Screw, 8-32 X 1/2				$ 692.56
23	548745		Clip, Wire (2)		Appelez-nous	-
24	548655		Frame		Appelez-nous	-
25	488474		Screw, 8-32 X 3/8		Appelez-nous	-
26	227991		Nut, Wire		Appelez-nous	-
27	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 488879)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	548663		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Drier   (Replaces: 548504)			Immediately	$ 57.13
33	481846		Condenser & Precooler Assembly		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	548737		Grommet (4)		Appelez-nous	-
36	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
37	WP4387489		Bimetal, Defrost   (Replaces: 937303)				$ 108.99
38	513584		Clamp		Appelez-nous	-
40	842041		Tray, Evaporating				$ 64.92
41	938337		Evaporator		Appelez-nous	-
42	850721		Clip, Heater (2)		Appelez-nous	-
43	937302		Heater, Defrost		Appelez-nous	-
45	943348		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
48	510716		Clamp (2)		Appelez-nous	-
49	989269		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
51	939106		Baffle, R.s.		Appelez-nous	-
52	939105		Baffle, L.s.		Appelez-nous	-
53	939104		Retainer, Baffle (2)		Appelez-nous	-
54	876764		Valve, Access(3/16``)			Immediately	$ 95.92
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 137.25
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
54	851358		Support, Heater		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 134.49

    View Diagram in Separate Window       Print Part List
