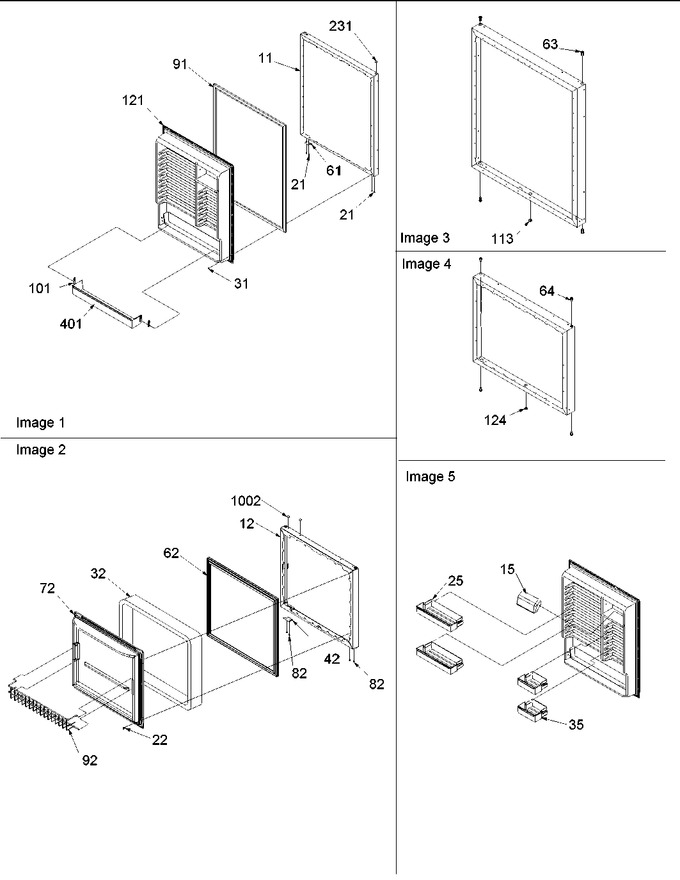

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12206801W		Assy, Ref Door (white)		Appelez-nous	-
12	12206901W		Assy,fzr Dr Fm(white) Btm		Appelez-nous	-
15	10423419		Door,dairy		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
22	M0219730		Screw				$ 7.65
25	10419710		Shelf, Ref Dr		Appelez-nous	-
31	M0219730		Screw				$ 7.65
32	876370		Insulation, Batt   (Replaces: B0523561)				$ 231.56
35	10502917		Bucket, Ref Door		Appelez-nous	-
42	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 65.99
61	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 65.99
62	WP12550122Q		Freezer Door Gasket   (Replaces: 12550122)				$ 290.45
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	12228801		Liner, Fzr Door		Appelez-nous	-
82	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
91	WP12550121Q		Gasket,ref Dr(white)   (Replaces: 12550121)				$ 321.03
92	12208702		Retainer, Frz Door		Appelez-nous	-
101	10202001		Clip, Retainer		Appelez-nous	-
113	M0310308		Plug, Button (wht)		Appelez-nous	-
121	12228701		Liner, Ref Door		Appelez-nous	-
124	M0310308		Plug, Button (wht)		Appelez-nous	-
231	10686401		Plug Button		Appelez-nous	-
401	10419110		Retainer, Ref Door		Appelez-nous	-
1002	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
