01 - Cabinet Back


02 - Covers, Hinges & Light Covers


03 - Crisper Assy & Freezer Feature Assy


04 - Door Assy


05 - Door Handles & Accessories


06 - Evaporator & Freezer Control Assy


07 - Ice Maker Assy & Parts


08 - Insulation & Roller Assy


09 - Light Switches & Drain Funnel


10 - Machine Compartment


11 - Refrig. Feature, Shelf & Meatkeeper Assy

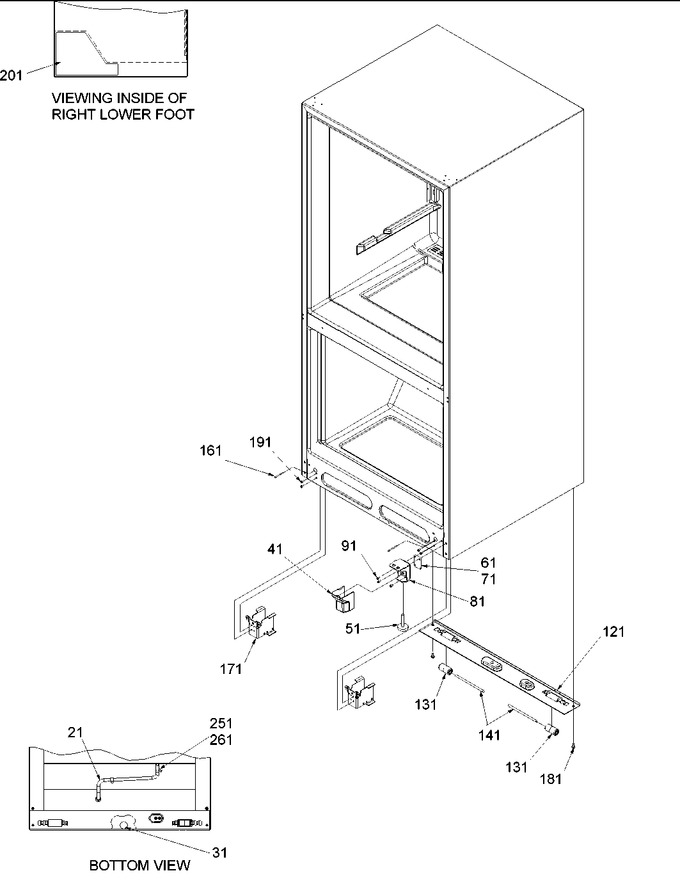

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	12205401		Tube, Drain		Appelez-nous	-
31	A3076901		Plug-button				$ 5.70
41	10584802		Cover, Lower Hinge (white)		Appelez-nous	-
51	W11177593		Brake, Foot   (Replaces: 10354001)				$ 11.60
61	10447905		Shim, Hinge (btm)		Appelez-nous	-
71	10447906		Shim Hinge		Appelez-nous	-
81	10585508		Hinge,(w)btm-e Ct		Appelez-nous	-
91	WP67006715		Screw, Sm   (Replaces: M0241508)				$ 7.19
121	10427110		Cabinet Brace-pnt		Appelez-nous	-
131	10450701		Roller, Rear				$ 28.91
141	10450901		Axle, Roller		Appelez-nous	-
161	M0204336		Screw, Adj Roller		Appelez-nous	-
171	12452601Q		Assy, Roller Bracket		Appelez-nous	-
181	M0260242		Screw, Tf		Appelez-nous	-
191	W11573574		Screw, Sm   (Replaces: M0211031)			Immediately	$ 14.02
201	10663001		Insul., R. Foot		Appelez-nous	-
251	M0227217		Screw, Sm		Appelez-nous	-
261	M0102303		Clamp		Appelez-nous	-
