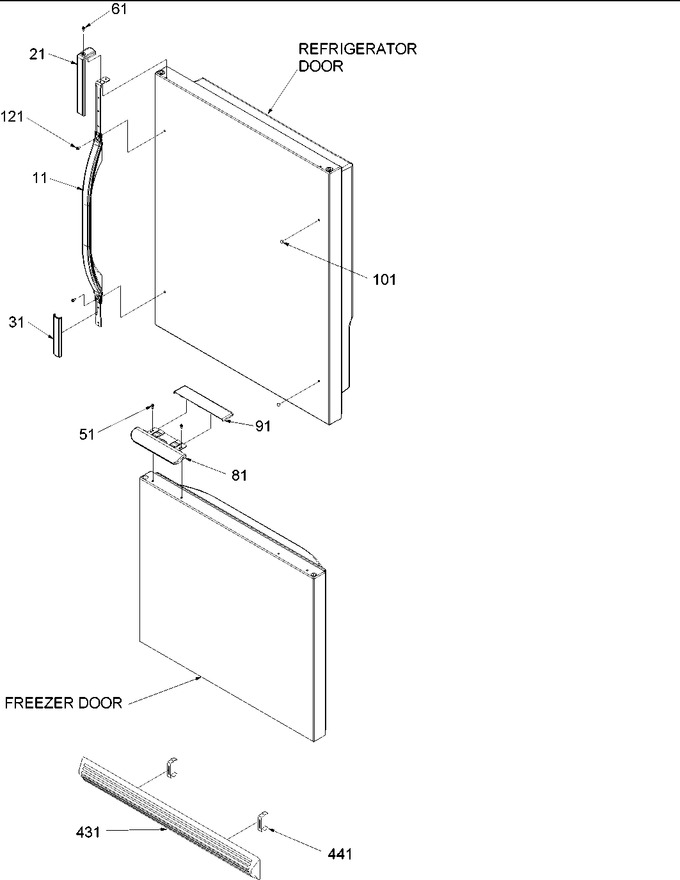

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443506W		Handle,ref Dr(white)		Appelez-nous	-
21	12443301		Trim, Upper Handle		Appelez-nous	-
31	12273510		Trim, Lwr Handle		Appelez-nous	-
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
61	12248201		Screw, Hndl Cone				$ 5.48
81	WP67005140		Handle, Frz Dr (white)   (Replaces: 12285404)			Immediately	$ 148.34
91	12285501		Cap, Hndl Frz W		Appelez-nous	-
101	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.38
431	10474902		Grille, Toe (white) (19)		Appelez-nous	-
441	10551502		Clip, Toe Grille				$ 5.84
