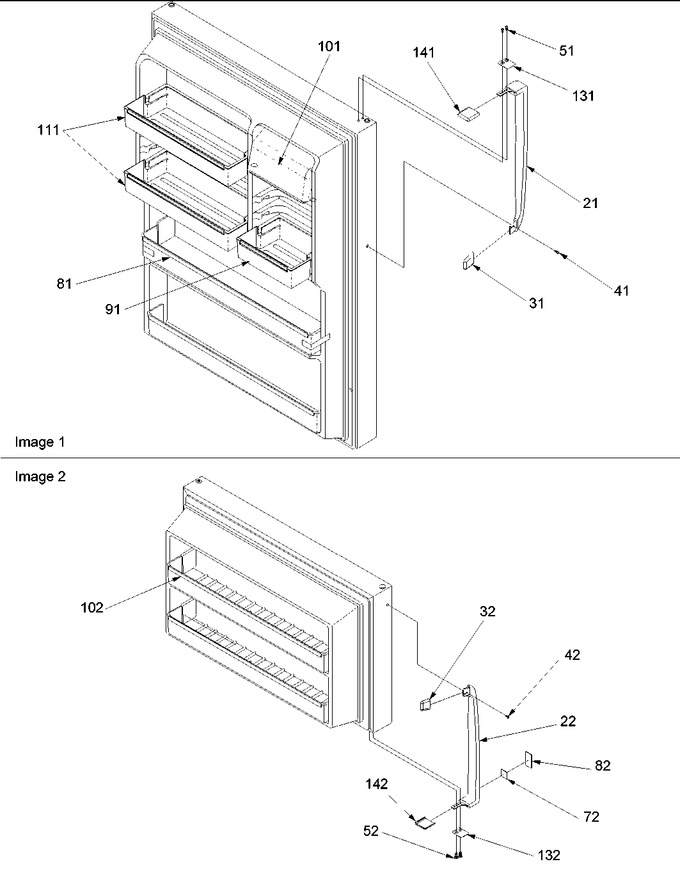

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
21	12325502		Handle, W Ref		Appelez-nous	-
22	12325501		Handle, W Frz		Appelez-nous	-
31	10907401		Cap, W Dr Handle		Appelez-nous	-
32	10907402		Cap, W Dr Handle		Appelez-nous	-
41	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
42	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
51	M0221744		Screw-sm Shldr		Appelez-nous	-
52	M0221744		Screw-sm Shldr		Appelez-nous	-
72	10926601		Nameplate, Handle		Appelez-nous	-
81	10419110		Retainer, Ref Door		Appelez-nous	-
82	10992120		Insert,handle(white)		Appelez-nous	-
91	10502917		Bucket, Ref Door		Appelez-nous	-
101	10423419		Door,dairy		Appelez-nous	-
102	10419209		Retainer,ref Door		Appelez-nous	-
111	10419710		Shelf, Ref Dr		Appelez-nous	-
131	12044401		Clip-door Cap		Appelez-nous	-
132	12044401		Clip-door Cap		Appelez-nous	-
141	10913501		Cap, W Dr Handle		Appelez-nous	-
142	10913501		Cap, W Dr Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
