SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assy


03 - Door Handles & Door Shelves


04 - Door Hinges, Fz Duct


05 - Evaporator & Evaporator Fan Motor Assy


06 - Ice Maker Assy & Parts


07 - Interior Cabinets & Drain Block Assy


08 - Ladders, Lower Cabinet


09 - Machine Compartment


10 - Miscellaeous Information


11 - Shelving & Crisper Frame Assy

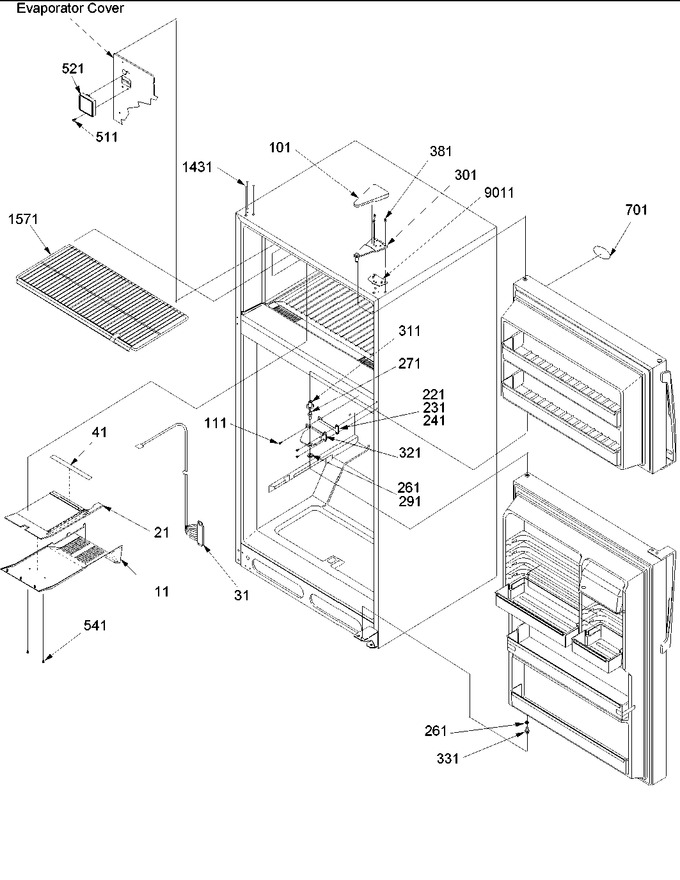

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10440406		Duct, Frz Air		Appelez-nous	-
21	10779602		Insul. Air Duct		Appelez-nous	-
31	12509201		Harness, Cabinet		Appelez-nous	-
41	B8386613		Gasket		Appelez-nous	-
101	12076302		Cover, Hinge (wht)		Appelez-nous	-
111	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
143	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
157	Y10440001		Shelf, Wire Frz. (18)		Appelez-nous	-
221	10562201		Shim, Center Hinge		Appelez-nous	-
231	10562202		Shim, Center Hinge		Appelez-nous	-
241	10562203		Shim, Center Hinge		Appelez-nous	-
261	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
271	10351002		Pin, Hinge (ctr)		Appelez-nous	-
291	M0274058		Shim, Non Metal (wht)				$ 5.83
301	12077316		Hinge, Top-e Ct		Appelez-nous	-
311	12028501		Closure, Door (wht)				$ 6.67
321	12446503		Hinge,ctr-e Ct(white)		Appelez-nous	-
331	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
521	D7874403		Cover-fl Tb/plug		Appelez-nous	-
541	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
701	Y12528501		Nameplate, Dba   (Replaces: 12536301)			Immediately	$ 62.74
901	12545201		Shim, Posi Pin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
