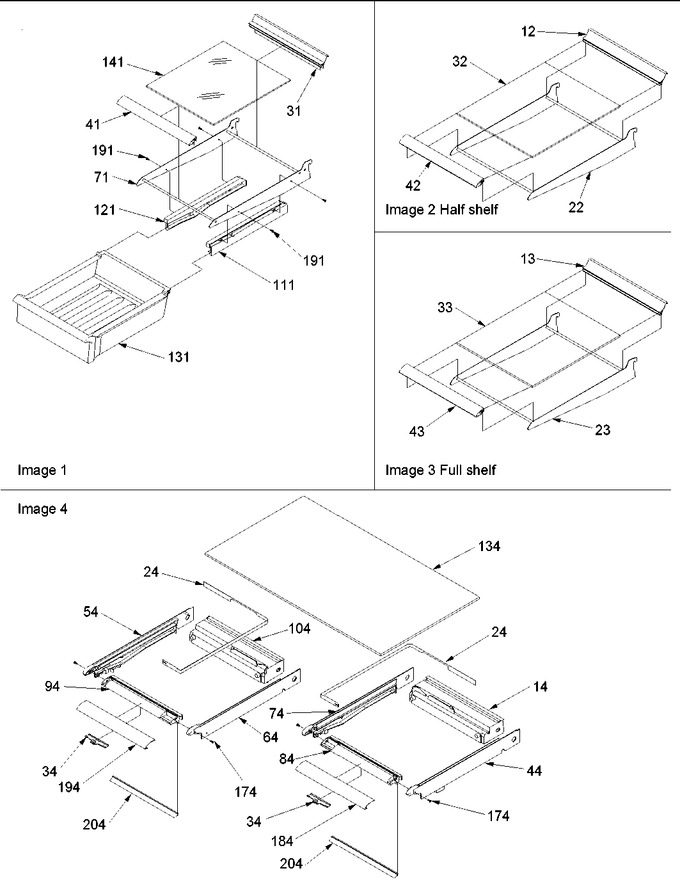

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10946009		Extr, Rear Shelf		Appelez-nous	-
13	10946010		Extr, Rear Shelf		Appelez-nous	-
14	10433805		Rail, Crisper Back		Appelez-nous	-
22	10460106		Shelf, Glass Frame		Appelez-nous	-
23	10460104		Frame, Glass Shelf (full)		Appelez-nous	-
24	10467802		Band, Crisper Control (18-19)		Appelez-nous	-
31	10946009		Extr, Rear Shelf		Appelez-nous	-
32	10370097		Glass, Split Shelf		Appelez-nous	-
33	10370098		Glass, Full Shelf		Appelez-nous	-
34	10797501		Slide, Crisper		Appelez-nous	-
41	10459937		Extr, Front Shelf		Appelez-nous	-
42	10459933		Extr, Front Shelf		Appelez-nous	-
43	10459932		Extr, Front Shelf		Appelez-nous	-
44	10432703		Rail, Side Crisper		Appelez-nous	-
54	10432704		Rail, Side Crisper		Appelez-nous	-
64	10432805		Rail, Ctr. Crisper				$ 21.50
71	10460106		Shelf, Glass Frame		Appelez-nous	-
74	10432806		Rail, Ctr. Crisper				$ 23.67
84	10687701		Rail, Crisper Fr0nt(r)		Appelez-nous	-
94	10687702		Rail, Crisper Front(l)		Appelez-nous	-
104	10435605		Rail, Crisper Back		Appelez-nous	-
111	12027201		Glide, R Deli				$ 64.15
121	12027101		Glide, L Deli		Appelez-nous	-
131	10417115		Pan, Meat Keeper		Appelez-nous	-
134	10370016		Glass, Shelf (18)		Appelez-nous	-
141	10370097		Glass, Split Shelf		Appelez-nous	-
174	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
184	10688087		Extr,r Crisp Front		Appelez-nous	-
191	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
194	10688086		Extr,l Crisp Front		Appelez-nous	-
204	10530205		Seal, Crisper		Appelez-nous	-
