View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

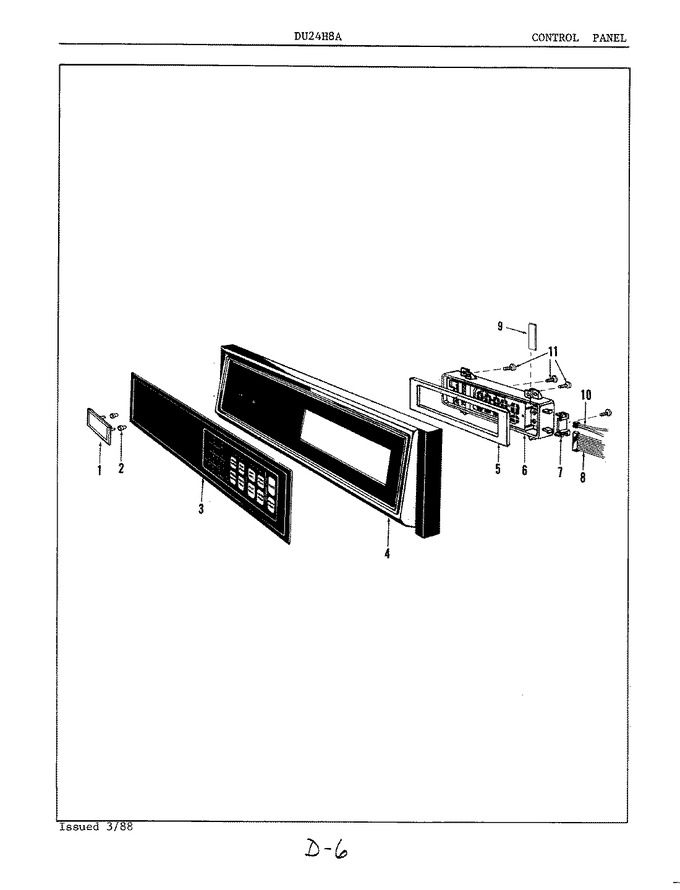

01 - Control Panel
02 - Detergent Cup
03 - Door
04 - Frame
05 - Motor, Heater & Spray Arm
06 - Rack
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 809325 | Nameplate |
|
- | |||||
| 1 | 809324 | Nameplate |
|
- | |||||
| 1 | 809326 | Nameplate |
|
- | |||||
| 2 | 809335 | Grommet |
|
- | |||||
| 3 | 809338 | Overlay |
|
- | |||||
| 4 | 809339 | Control Panel |
|
- | |||||
| 5 | 809540 | Control Case Gasket |
|
- | |||||
| 6 | 809341 | Timer |
|
- | |||||
| 7 | 809223 | Clip |
|
- | |||||
| 8 | 809224 | Wire Harness |
|
- | |||||
| 9 | 809287 | Sealant |
|
- | |||||
| 10 | 809225 | Wire Harness |
|
- | |||||
| 11 | 809175 | Screw |
|
- |
