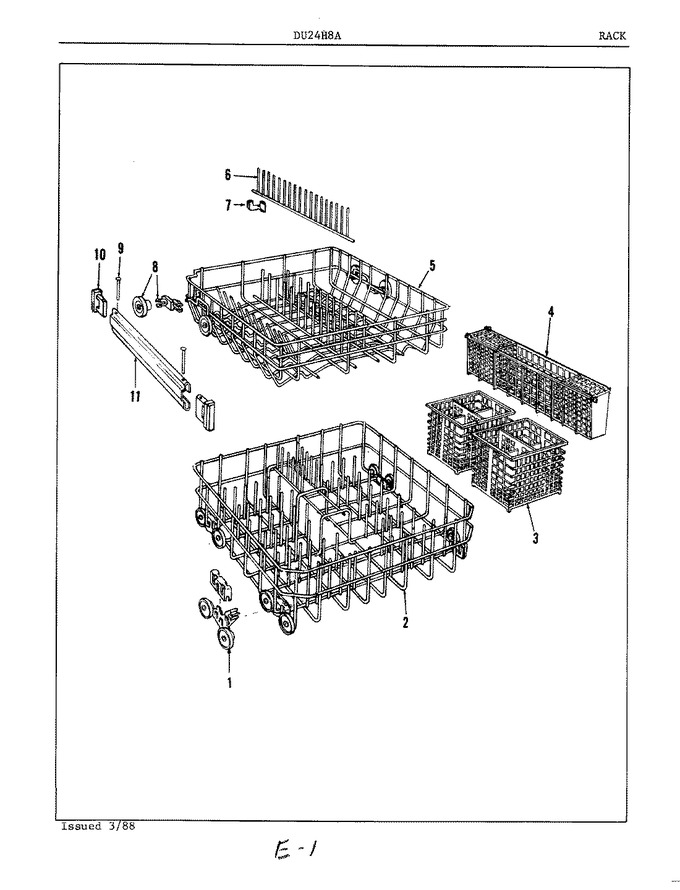

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Detergent Cup
03 - Door
04 - Frame
05 - Motor, Heater & Spray Arm
06 - Rack
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807008 | Wheel Asm |
|
- | |||||
| 2 | 809346 | Lower Rack Asm |
|
- | |||||
| 3 | 808845 | Slvrware Basket |
|
- | |||||
| 4 | 808242 | Basket |
|
- | |||||
| 5 | 809499 | Upper Rack Asm |
|
- | |||||
| 6 | 809508 | Fence |
|
- | |||||
| 7 | 809509 | Fence Bracket |
|
- | |||||
| 8 | 809500 | Rack Wheel Asm |
|
- | |||||
| 9 | 809502 | Slide Cap Pin |
|
- | |||||
| 10 | 809503 | Slide Cap |
|
- | |||||
| 11 | 809501 | Rack Slide |
|
- |
