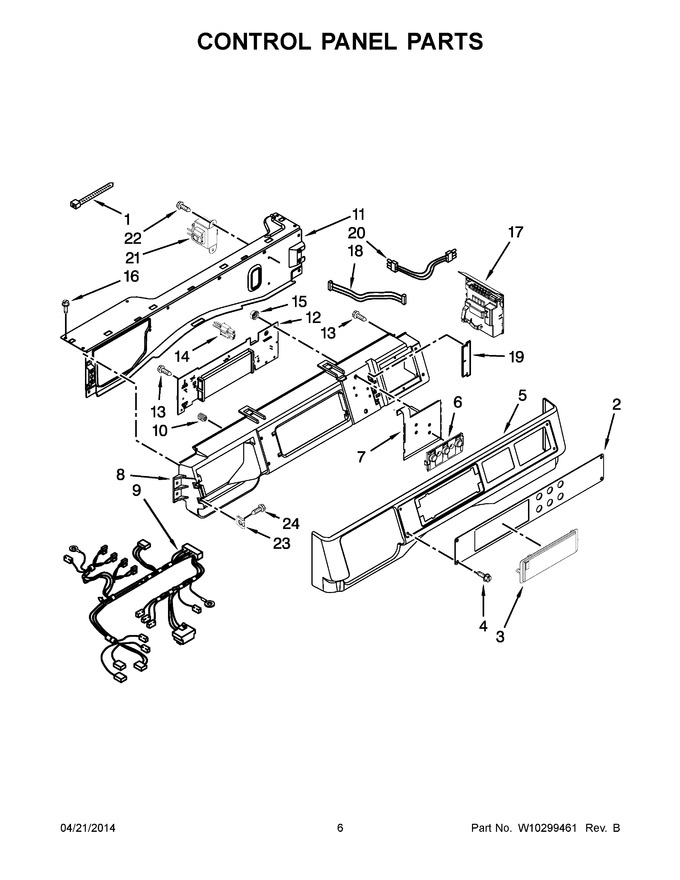

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2205813 | Tie, Cable (Replaces: 3429563) |
|
$ 8.11 | |||||
| 2 | W10299419 | Facia / Overlay |
|
- | |||||
| 3 | WPW10131114 | Cover, Display (Replaces: W10131114) |
|
$ 49.92 | |||||
| 4 | WPW10137457 | Screw (Replaces: W10137457) |
|
$ 7.85 | |||||
| 5 | W10779084 | Console, Outer (Replaces: W10137458) |
|
$ 138.29 | |||||
| 6 | W10803340 | Push Button (Replaces: W10137455) |
|
$ 123.24 | |||||
| 7 | WPW10135255 | Switch, Membrane & Backer Plate (Replaces: W10135255) |
|
$ 219.41 | |||||
| 8 | W11028369 | Console, Inner (Replaces: W10137426) |
|
$ 336.35 | |||||
| 9 | W10200792 | Harness, Wiring (upper Main) |
|
- | |||||
| 10 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 9.23 | |||||
| 11 | W10294428 | Bracket, Console (Replaces: W10137396) |
|
- | |||||
| 12 | WPW10166345 | User Interface (Replaces: W10166345) |
|
$ 214.25 | |||||
| 13 | 489136 | Screw |
|
$ 10.80 | |||||
| 14 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 | |||||
| 15 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 16 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 17 | WPW10166391 | Microcomputer, Machine Control (Replaces: W10202105) |
|
$ 164.79 | |||||
| 18 | W10155150 | Harness, Test |
|
$ 3.36 | |||||
| 19 | W10187276 | Seal, Console |
|
- | |||||
| 20 | W10200791 | Harness, Wiring (console Uic) |
|
- | |||||
| 21 | W10751202 | Transformer (Replaces: W10205520) |
|
$ 225.34 | |||||
| 22 | 8540329 | Screw |
|
- | |||||
| 23 | WP9781235 | Nut, ``u`` (Replaces: 9781235) |
|
$ 12.56 | |||||
| 24 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 7.30 |
