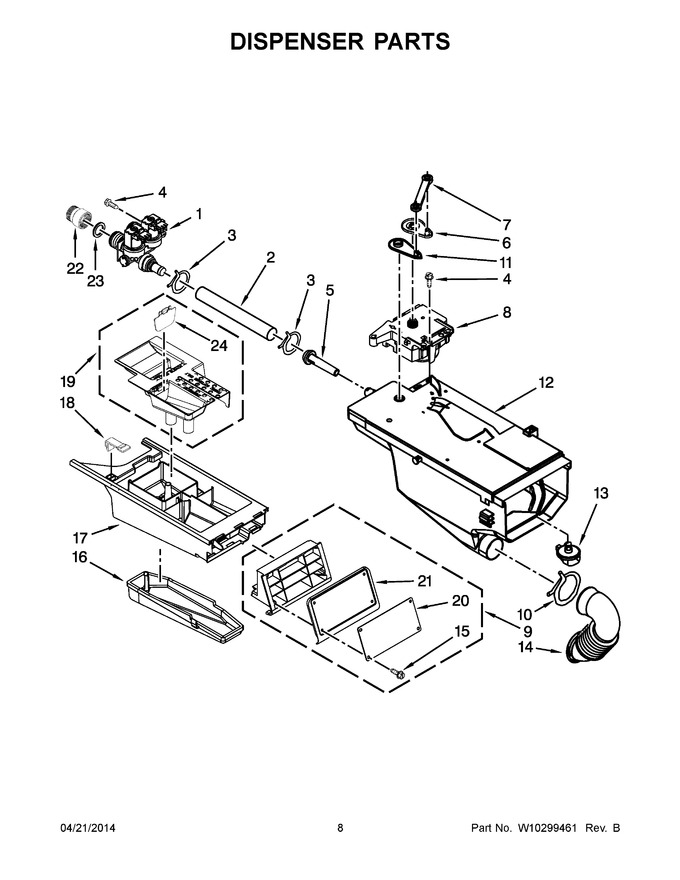

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10184483		Valve, Inlet   (Replaces: W10184482)				$ 48.60
2	W10803052		Hose, Valve To Dispenser   (Replaces: 8540065)				$ 14.40
3	WP596669		Clamp, Hose   (Replaces: W10096852)			Immediately	$ 8.82
4	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
5	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 94.82
6	WP8540393		Cam, Actuator   (Replaces: 8540393)				$ 7.55
7	WP8540394		Lever, Water Distribution   (Replaces: 8540394)				$ 7.55
8	W10182763		Actuator		Appelez-nous	-
9	W10595632		Handle Assembly, Drawer   (Replaces: W10299421)				$ 150.40
10	W11622908		Clamp, Hose   (Replaces: W10273032)				$ 23.33
11	WP8540395		Connection, Lever   (Replaces: 8540395)				$ 7.30
12	W10223702		Dispenser		Appelez-nous	-
13	WP8540053		Nozzle, Distribution   (Replaces: 8540053)				$ 104.71
14	W11366227		Hose, Dispenser To Tub   (Replaces: 8540063)			Immediately	$ 23.35
15	WPW10137456		Screw   (Replaces: W10137456)				$ 8.61
16	WP8540399		Cover, Detergent Drawer   (Replaces: 8540399)				$ 78.59
17	WP8540402		Drawer, Detergent   (Replaces: 8540402)			Immediately	$ 137.17
18	WPW10198458		Hook, Drawer   (Replaces: W10137402)				$ 7.77
19	W10433390		Siphon, Bleach/softener   (Replaces: W10277537)			Immediately	$ 83.44
20	W10299438		Facia / Overlay, Drawer		Appelez-nous	-
21	WPW10137460		Cover, Handle   (Replaces: W10137460)			Immediately	$ 109.86
22	W10196695		Valve, Check		Appelez-nous	-
23	W10196695		Seal, Check Valve   (Replaces: W10218846)		Appelez-nous	-
24	WPW10298953		Door, Living Hinge   (Replaces: W10276474)				$ 6.75
