Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10283361 Nut, Pulley   (Replaces: 8533999) In-Stock Immediately $ 79.11

2 WP8540088C Pulley   (Replaces: 8540088C) Special Order $ 196.32

3 WPW10260319 Belt, Drive   (Replaces: W10260319) In-Stock Immediately $ 68.92

4 W10200297 Counterweight, Front Lower   (Replaces: W10151304) Special Order $ 336.76

5 W10142720 Pipe, Ventilation Special Order $ 105.17

6 W10273034 Clamp, Vent Hose Special Order $ 10.69

7 W11398765 Hose, Exhaust   (Replaces: 8540019) Special Order $ 30.18

8 W10364247 Tub, Rear   (Replaces: W10293058) Special Order $ 380.50

9 8540602 Counterweight, Rear Appelez-nous -
10 WPW10111158 Gasket, Tub   (Replaces: 8540090) In-Stock Immediately $ 99.13

11 W10165321 Basket, Complete Appelez-nous -
12 W11700547 Baffle, Tub   (Replaces: W10118982) Special Order $ 33.47

13 W10142721 Ventilation, Connector Appelez-nous -
14 W10142722 Flap, Ventilation Appelez-nous -
15 W10151303 Counterweight, Front Upper Appelez-nous -
16 280159 Spring, Suspension   (Replaces: W10010360) Special Order $ 106.76

17 W11685857 Screw   (Replaces: W10094780) Special Order $ 14.10

18 W10273033 Clamp, Hose Appelez-nous -
19 WP8540015 Hose, Exhaust   (Replaces: 8540015) In-Stock Immediately $ 41.85

20 WP8540092 Clamp, Tub   (Replaces: 8540092) Special Order $ 7.59

21 W10277540 Tub, Front   (Replaces: W10251648) Special Order $ 143.14

22 WP8182512 Nut, Push-in   (Replaces: 8540072) In-Stock Immediately $ 6.95

23 WPW10163171 Shock Absorber   (Replaces: W10159465) In-Stock Immediately $ 120.09

24 WPW10467289 Negative Thermistor Control   (Replaces: 8540226) In-Stock Immediately $ 47.80

25 W11590578 Seal, Rubber   (Replaces: 8540766) In-Stock Immediately $ 7.97

26 WP8540382 Screw   (Replaces: 8540382) Special Order $ 6.95

27 W10202464 Crosspiece Assembly Appelez-nous -
28 W10174473 Bolt, Counterweight Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

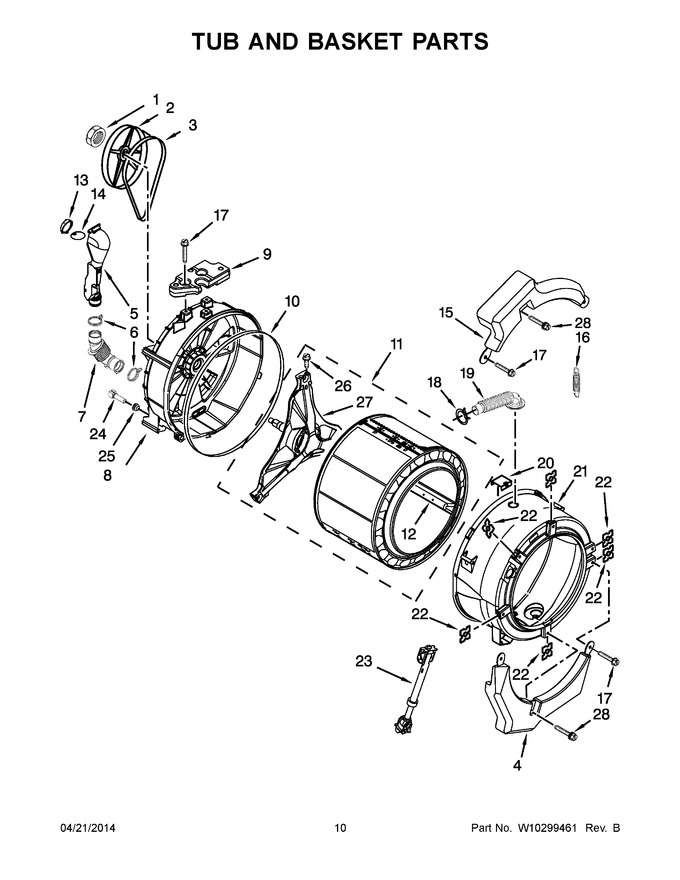

Diagram for 3LCHW9100WQ0
