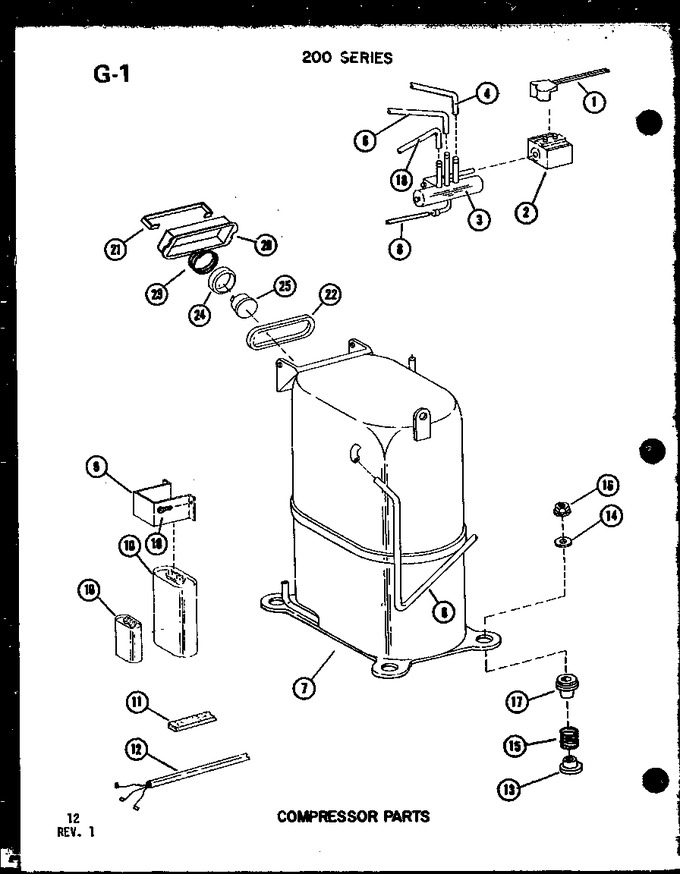

01 - Compressor Parts
02 - Condenser Parts
03 - Control Parts
04 - Evap & Action Air Parts
05 - Exterior Parts
06 - Factory Installed Mount
07 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | D5497701 | Suction Tube |
|
- | |||||
| 7 | D5497906 | Compressor Aj8520e |
|
- | |||||
| 8 | B1236901 | Discharge Tube |
|
- | |||||
| 9 | B5115902 | Strap-capacitor Mtg |
|
- | |||||
| 10 | D6711846 | Capacitor |
|
- | |||||
| 10 | D6711813 | Capacitor, Compressor, 35 Mfd, |
|
- | |||||
| 11 | A3030307 | Gasket |
|
- | |||||
| 12 | C6142301 | Wiring Harness |
|
- | |||||
| 13 | A3314101 | Grommet |
|
- | |||||
| 14 | M0274008 | Washer,fibre |
|
- | |||||
| 15 | A3314201 | Spring, Compressor |
|
- | |||||
| 16 | A3312201 | Nut |
|
- | |||||
| 16 | M0283610 | Nut |
|
- | |||||
| 17 | A3314001 | Grommet |
|
- | |||||
| 19 | M0211545 | Screw |
|
- | |||||
| 20 | B4793701 | Cover |
|
- | |||||
| 21 | A4587801 | Bale Strap |
|
- | |||||
| 22 | A4588001 | Seal |
|
- | |||||
| 23 | A4587901 | Spring |
|
- | |||||
| 24 | A4593501 | Adaptor |
|
- | |||||
| 25 | D4976680 | Overload |
|
- |
