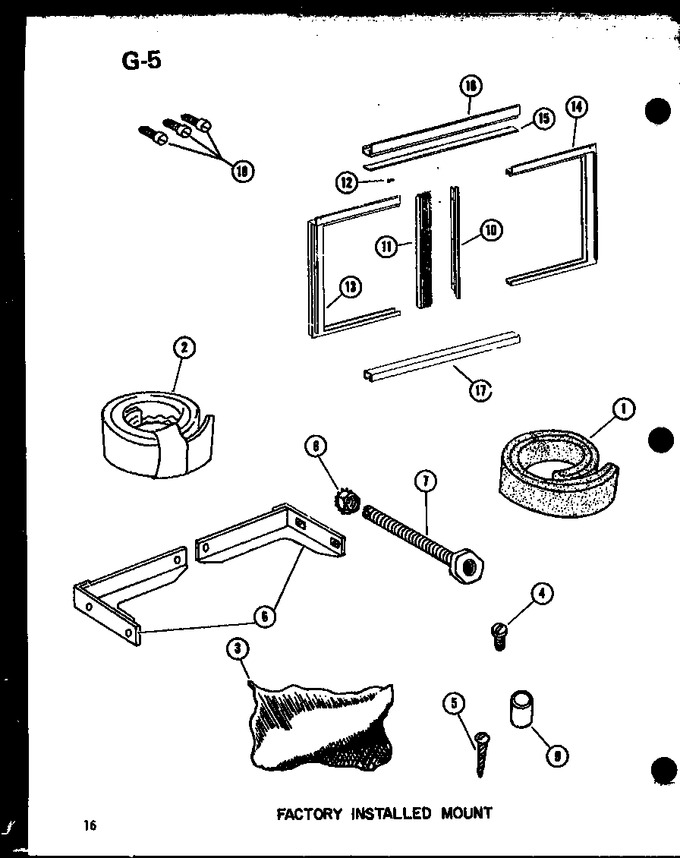

06 - Factory Installed Mount
07 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A4660601 | Gasket, Sash Seal Strip |
|
- | |||||
| 2 | A3030302 | Gasket |
|
- | |||||
| 3 | B1139003 | Accessory Kit |
|
- | |||||
| 4 | M0206557 | Screw |
|
- | |||||
| 5 | M0212062 | Screw |
|
- | |||||
| 6 | C5872102 | Weldment, Angle Support, L.h. |
|
- | |||||
| 6 | C5872101 | Weldment, Angle Support, R.h. |
|
- | |||||
| 7 | M0200003 | Screw Adjusting |
|
- | |||||
| 8 | M0282019 | Nut-keps |
|
- | |||||
| 9 | A4065501 | Spacer K |
|
- | |||||
| 10 | B1124801 | Strip-backer |
|
- | |||||
| 11 | D5481201 | Curtain, Sliding Frame, 1 Each |
|
- | |||||
| 12 | M1250031 | Screw |
|
- | |||||
| 13 | D5481102 | Frame, Sliding, R.h. |
|
- | |||||
| 13 | C5905806 | Frame Assy |
|
- | |||||
| 14 | D5481101 | Frame, Sliding, L.h. |
|
- | |||||
| 14 | C5905805 | Frame Assy |
|
- | |||||
| 15 | A3030301 | Gasket (inch) |
|
- | |||||
| 16 | C5903404 | Top Rail-painted |
|
- | |||||
| 17 | B1124704 | Bottom Rail-painted |
|
- | |||||
| 18 | WP4312464 | Screw (Replaces: M0211029) |
|
$ 7.30 |
