01 - Compressor Parts

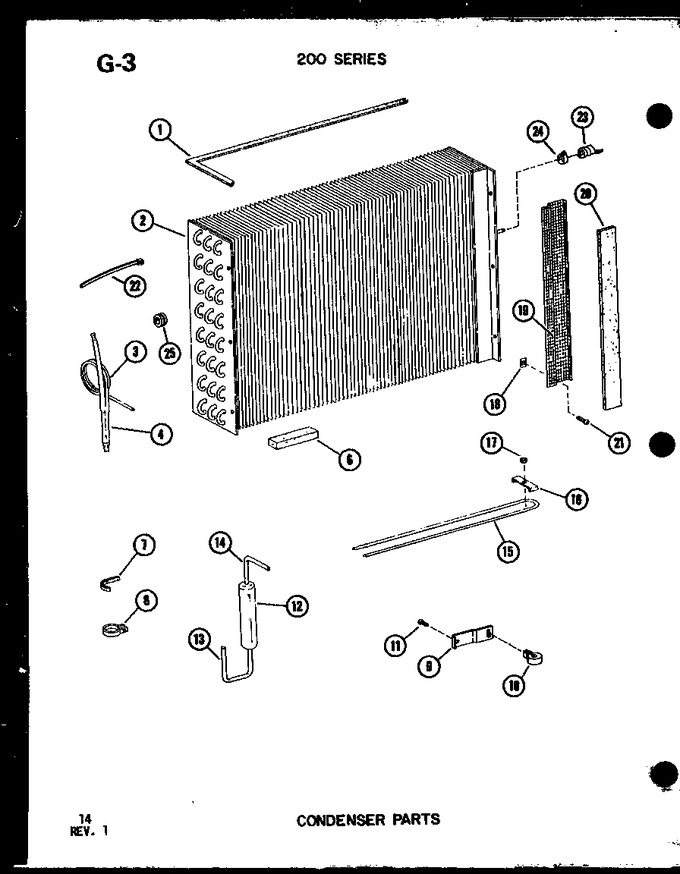

02 - Condenser Parts
03 - Control Parts
04 - Evap & Action Air Parts
05 - Exterior Parts
06 - Factory Installed Mount
07 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A3030332 | Gasket-per Ft |
|
- | |||||
| 2 | D5508802 | Condenser Assy |
|
- | |||||
| 3 | C6141601 | Cap Tube |
|
- | |||||
| 4 | B5159301 | Strainer |
|
- | |||||
| 6 | A4017201 | Seal Strip |
|
- | |||||
| 7 | B1114701 | Gasket-5.875`` |
|
- | |||||
| 9 | A3310502 | Clamp |
|
- | |||||
| 10 | A3311001 | Grommet, Rubber |
|
- | |||||
| 11 | R9800670 | Screw (Replaces: M0211343) |
|
$ 10.58 | |||||
| 12 | C5885804 | Muffler |
|
- | |||||
| 14 | B1236801 | Discharge Tube |
|
- | |||||
| 17 | Y052721 | Nut (Replaces: M0281006) |
|
$ 24.95 | |||||
| 18 | M0286201 | Speed Nut |
|
- | |||||
| 19 | B5117101 | Screen |
|
- | |||||
| 20 | A3030307 | Gasket |
|
- | |||||
| 21 | M0211530 | Screw |
|
- | |||||
| 22 | M0321204 | Wire Tie |
|
- |
